Keysight Technologies N2791A Oscilloscope Probe, Probe Type: Differential 25MHz 700V 1:10, 1:100, Щупы для осциллографа

Keysight Technologies Oscilloscope Probe

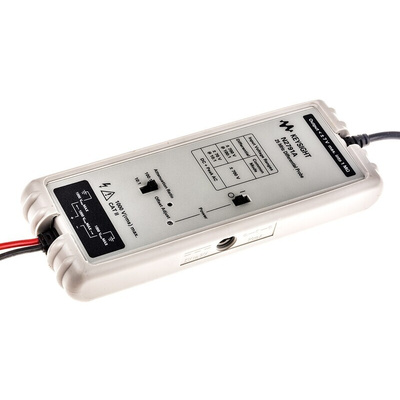

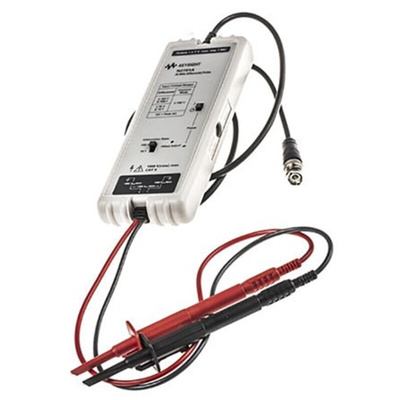

The Keysight Technologies N2791A oscilloscope probe offers conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements of up to 700V of differential voltage and common-mode voltage. It offers sufficient dynamic range and bandwidth for your application to make the floating measurements found in power electronics circuits safely and accurately. It also has an over-range indicator which alerts the user when the probe input exceeds the dynamic range of the probe. It is compatible with InfiniiVision 5000, 6000 (except 100MHz) and 7000 Series (with version 5.26.0001 software), Infiniium 8000, 54830 Series (with version 5.7 software) and Infiniium 9000 Series (with version 2.0 software). Each of these scopes can support four N2790A probes.

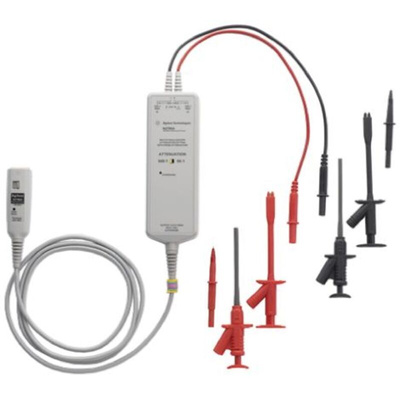

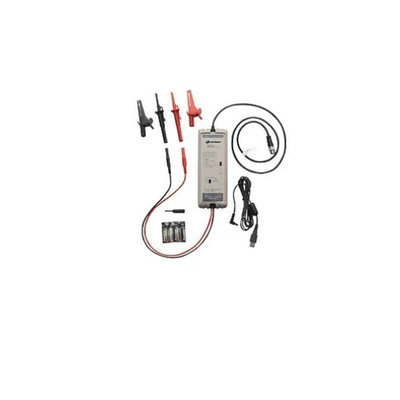

Supplied with alligator clips (2), hook clips (2), USB power cord 2m, 4 AA batteries, manual.

Features and Benefits

Bandwidth is DC to 25MHz (–3dB)
Attenuation ratio is 10:1/100:1
Input impedance is 4Mohm ll10pF each side to ground
Differential range is (10:1) ±70V (DC + peak AC)
Maximum differential is (100:1) ±700V (DC + peak AC)
Common mode range is ±700V (100:1) (DC + peak AC) or 70V (10:1)
Absolute maximum voltage is 1000VRMS CAT III (1/100 & 1/1000)
Offset (typical) is ±7.5mV
Source input impedance is 1Mohm BNC interface
AC CMRR (typical) is -80dB at 50/60Hz and -40dB at 1MHz
Compatible with any oscilloscope with 1 MΩ BNC input
Ambient operating temperature ranges between -10°C and 50°C
Power requirement 4xAA cells

Certifications

IEC61010-031
CAT II 1000 VAC
