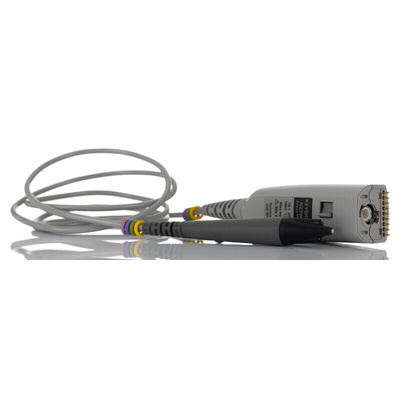

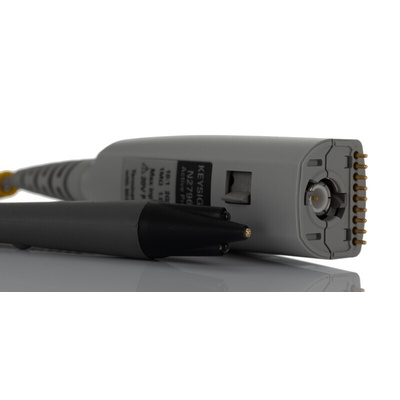

Keysight Single-ended Active Probes N2795A & N2796A
New generation of low-cost single-ended active probes with AutoProbe interface, compatible with Keysight's InfiniiVision and Infiniium families of oscilloscopes. These probes have the general-purpose, high-speed probing characteristics suitable for wide-ranging applications including digital system design, component design/characterization and educational research. The input resistance and low input capacitance provide ultra low loading of the DUT. This, together with superior signal fidelity, makes the probes useful for most digital logic voltages. Wide dynamic range and offset range enhance the breadth of application.
Input dynamic range -8V → +8V (DC or peak AC)
Non-destructive maximum input voltage -20V → +20V
Flatness (typical) 0.4dB (100kHz → 100MHz), 0.6dB (100MHz → 500MHz), 0.8dB (500kHz → 1GHz), 1.3dB (1GHz → 2GHz)
Equipped with white LED headlight to illuminate the circuit under test
Powered directly by the InfiniiVision and Infiniium AutoProbe interface, eliminating the need for an additional power supply
Cable length 1.3m
Note
Suitable for use with Agilent InfiniiVision 5000, 6000, 7000 (except 6000 100MHz) and Infiniium 9000, 90000, 90000 X-Series (with N5442A precision BNC adapter)
Supplied with

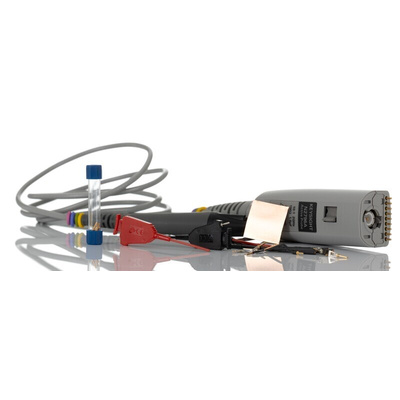

spring probe tip (2), rigid probe tip (2), flex nose clip adapter, copper pad 10x, Y-lead adapter 10cm, right angle ground 5cm, right angle ground 10cm, ground blade (2), offset ground, flex ground, colour coding rings (4), accessory card
Supplied with
type":"Supplied with",
spring probe tip (2), rigid probe tip (2), flex nose clip adapter, copper pad 10x, Y-lead adapter 10cm, right angle ground 5cm, right angle ground 10cm, ground blade (2), offset ground, flex ground, colour coding rings (4), accessory card
Техническая спецификацияN2795A/96A Single-ended Active Probes Data Sheet
