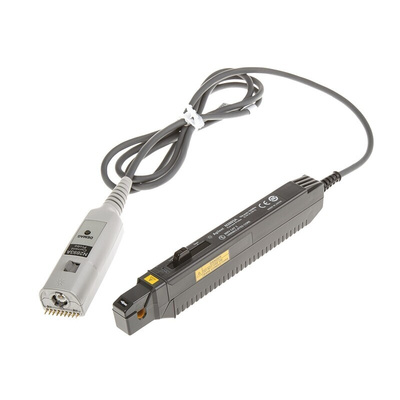

Keysight Technologies N2893A Oscilloscope Probe, Probe Type: AC/DC DC to 100 MHz

Keysight Technologies Current Probe & Clamp

The Keysight Technologies 100MHz bandwidth, active current probe for InfiniiVision and Infiniium oscilloscopes. The probe features flat bandwidth (DC-100MHz), low noise (<2.5 mA RMS) and low circuit insertion loss. Auto demagnetization (degauss) and calibration removes any residual magnetism and unwanted DC offset in the probe. The probe is directly powered by the InfiniiVision and Infiniium Autoprobe interface, eliminating the need for an additional power supply. It is ideal for capturing transient current signals such as those found in motor controllers, switching power supplies, inverters, and current amplifiers driving inductive loads.

Features and Benefits

Wide bandwidth from DC to 100MHz
High S/N ratio
Low current measurement capability
15A peak, 15ADC, 10Arms continuous, 30A peak non-continuous current
Easy protect function at excessive input

Applications

For use with 80000/90000 series
Use N278xA current probe with N2779A power supply
E2697A high impedance adapter
For use with 90000 X-series
Use the N5449A high impedance probe adapter

Certifications

CAT I 300V
CAT I

Agilent N2893A 100 MHz Current Probe Users Guide

Oscilloscope Probes Data Sheet

N28xxA, N28xxB_EN
