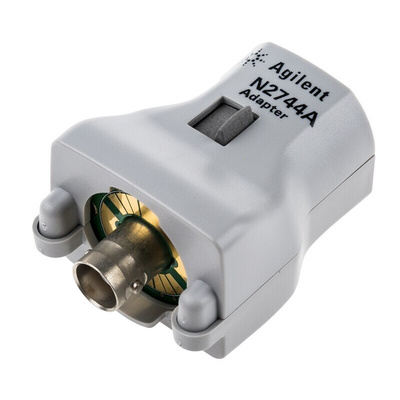

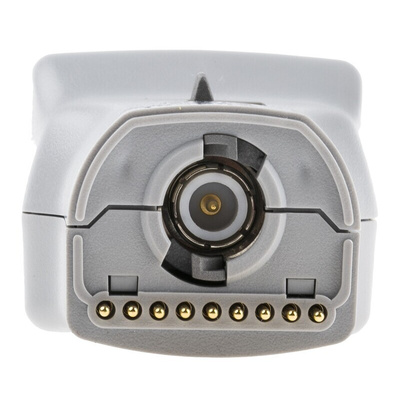

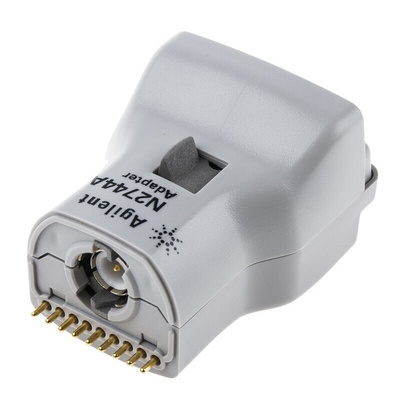

Keysight N2744A T2A Probe Interface Adapter

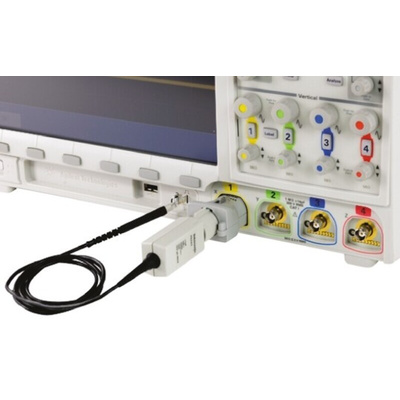

The N2744A T2A interface adapter enables selected Tektronix TekProbe interface level II probes to be used with Keysight oscilloscopes with the AutoProbe interface. TekProbe-BNC probe types are simply plugged into the T2A adapter which is then plugged directly into any AutoProbe input channel on an InfiniiVision or Infiniium oscilloscope. The user selects the probe model in the scope menu and the Keysight oscilloscope sets up the attenuation factor and probe type automatically. The T2A interface adapter supplies the necessary probe power and offset control as used by the connected TekProbe probe.

Bandwidth 4GHz (adapter only)
Power supplies +15V, -15V, +5V, -5V (each 2%)
Maximum output current 200mA for positive and negative supplies
Offset control range ±1V (from the adapter)
Maximum input voltage 42Vpk, 30Vrms
Dimensions 37 x 29.5 x 58mm (W x L x D)
Weight 45g
