Tektronix TPP0850 Oscilloscope Probe, Probe Type: High Voltage, Passive 800MHz 1kV 1:50, Щупы для осциллографа

Tektronix MSO/DPO 4000/5000 Accessories

The TPP0850 is a high bandwidth probe (800 MHz) for high-voltage signals (up to 2500 Vp-p). This is ideal for testing power semiconductors and switch-mode power supplies, which continue to increase in switching speed to minimize power loss, creating a need for faster rise time, higher bandwidth, and higher voltage probes. The TPP0850 meets this need and can be used with switching transistor circuits operating at 1200 V_RMS, above the voltage operating range of standard general-purpose probes. It is also able to accommodate emerging power applications that will require even faster rise time capabilities.

2500 V_Peak 1000 V CAT II
50X with readout coding
Designed for use with MSO/DPO5000 and MSO/DPO4000B series oscilloscopes

Supplied with
type":"Supplied with",

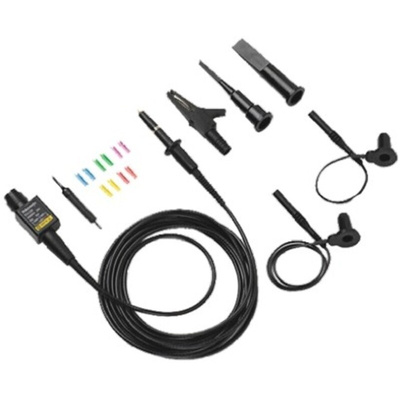

Cable markers set, crocodile clip, adjustment tool, hooktip (small), hooktip (large), 18in ground lead, 6in ground lead, instruction manual (070-8151-04)

Mixed Signal Oscilloscopes

Passive High-voltage Probes P5100A TPP0850 P5120 P5122 P6015A Data Sheet

Operating Instructions
