Tektronix P5100A Oscilloscope Probe, Probe Type: Passive 500MHz 1kV 1:100, Щупы для осциллографа

Tektronix Oscilloscope Probes

The Tektronix oscilloscope high voltage probe has a low input capacitance designed for higher frequency applications. This probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7pF to 30pF. A variety of screw-on accessories provide an easy connection to the device under test.

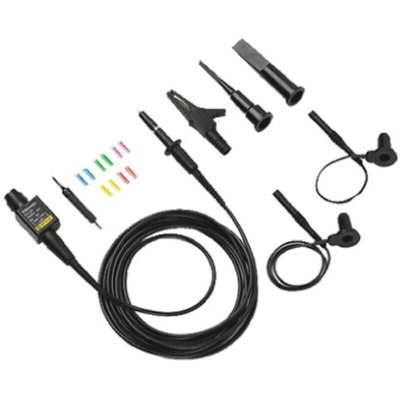

Supplied with:
Cable markers set
Crocodile clip
Adjustment tool
Hooktip (small)
Hooktip (large)
18in ground lead
6in ground lead
Instruction manual

Features and Benefits

Bandwidth is DC to 500MHz
Attenuation ratio is 1:100
Input impedance is 40Mohmll2.5pF
Rise time is <700ps
Maximum common mode input voltage is ±1KV
Maximum input voltage DC or RMS is 2.5kVPeak 1000VRMS CAT II
Wide compensation range (7pF to 30pF)

Applications

Power supply design
Design motor drive
Electronic ballast
Power semiconductors
Switch mode control
UPS systems
Power converters

Certifications

UL3111-1
EN61010-1
IEC61010-2-031
CSA1010.1
CSA1010.2.031
CAT II 1000VAC
