Tektronix 4000, 5000 Series TPP0502 Oscilloscope Probe, Passive, Voltage Type, 500MHz, 2x

Tektronix MSO/DPO 4000/5000 Accessories

The TPP0502 offers the industry’s highest bandwidth (500 MHz) and lowest attenuation factor (2X) for making low-voltage measurements such as ripple, a common measurement on the output of power supplies. The low capacitive loading of the TPP0502 means long ground leads can also be used on this probe with minimal impact on measurement quality, providing engineers with the flexibility to move around their design without worrying about ground lead length.

Compact probe head for probing small-geometry circuit elements
Small probe body for enhanced visibility to the Device-Under-Test
Rigid tip for secure Device-Under-Test connectivity
Replaceable probe tip cartridges
Large accessory set for versatile connectivity
1.3m long cable lead

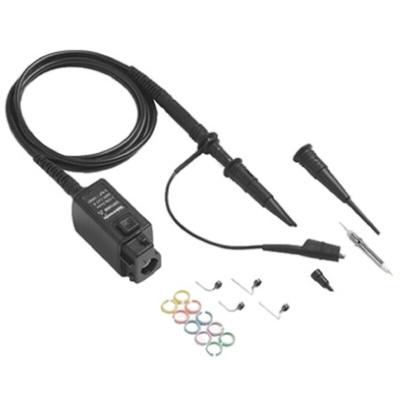

Supplied with
type":"Supplied with",

Certificate of Traceable Calibration, rigid tip 3.8 mm,
flex ground spring short 3.8mm (2), long ground spring (2), alligator ground 6in, hook tip regular,
hook tip micro, IC cap universal 3.8 mm

Mixed Signal Oscilloscopes

Passive Voltage Probes TPP1000 TPP0500 TPP0502 Data Sheet
