Tektronix P52XXA Series P5205A Oscilloscope Probe, Differential, High Voltage Type, 100MHz, 1:50, 1:500, Щупы для осциллографа

Tektronix High Voltage Differential Probes TMDP, THDP and P52xxA Series

Tektronix high voltage probing solutions offer safety and accuracy in applications which include: floating measurements; switching power supply design; motor drive design; electronic ballast design; CRT display design; power converter design and service; power device evaluation.

Overrange indicator
Safety certified
Switchable attenuation
Switchable bandwidth limit
Cable length 1.5m (THDP & TMDP), 1.8m (P52xxA)

Note

TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most commonly required setup controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope. Tektronix high voltage differential probes include: TMDPO200 ( 752-7366 ); THDPO200 ( 752-7357 ); THDP0100 ( 752-7353 ); P5200A ( 734-5029 ); P5202A ( 734-5022 ); P5205A ( 734-5026 ); P5210A ( 734-5035 ).

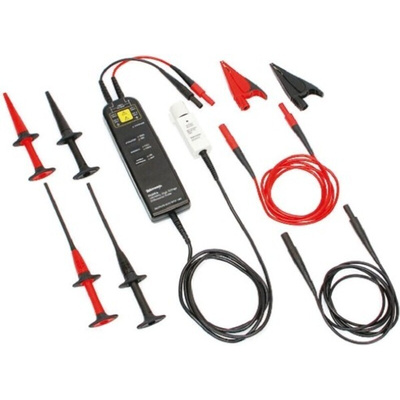

The P5205A is capable of measuring fast rise times of signals in floating circuits. It can safely measure voltages in IGBT circuits, such as motor drives or power converters, and is specifically designed to operate on Tektronix oscilloscopes with TEKPROBE® interface.

Supplied with
type":"Supplied with",

2 hook clips, 2 pincer clips, 2 alligator clips, 2 extension cables
