Tektronix P52XXA Series P5200A Oscilloscope Probe, Differential, High Voltage Type, 50MHz, 1:50, 1:500, Щупы для осциллографа

Tektronix Oscilloscope Probes

The Tektronix is active deferential voltage oscilloscope probe has a bandwidth of 50MHz and permits selection of 50x or 500x attenuation. It converts floating signals to low voltage ground-referenced signals that can be displayed safely and easily on any ground-referenced oscilloscope.
Note:
TMDP and THDP Series probes have the TekVPI® interface which enables smart communication between oscilloscope and probe - each TekVPI probe features controls and indicators located on the probe compensation box, designed to provide quick and easy access to the probe's most commonly required set-up controls and operating status. P52xxA Series probes have the Tektronix TekProbe® interface which communicates scale information to the oscilloscope.
The P5200A can be used with any oscilloscope and enables users to safely make measurements of floating circuits with their oscilloscope grounded.

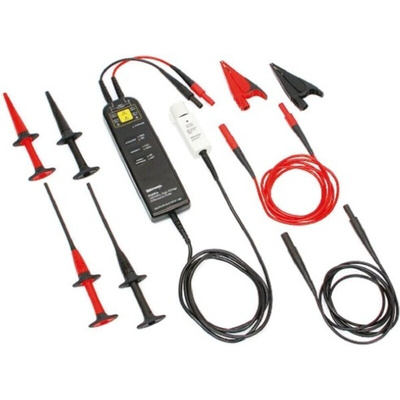

Supplied with
2 hook clips
2 pincer clips
2 alligator clips
2 extension cables
Warning
Do not use the P5200A with scopes that have floating inputs (isolated inputs), such as the Tektronix TPS2000 Series. The P5200A requires an oscilloscope or other measurement instruments with grounded inputs.

Features and Benefits

Bandwidth is DC to 50MHz
Attenuation ratio is 1:50 and 1:500
Input impedance is 5Mohmll4pF
Maximum common mode voltage is ±1.3KV
Maximum Input voltage is 1000V CAT II
Wide compensation range (7pF to 30pF)
CMRR (typical) is 100kHz: > -60dB 3.2MHz: > -30dB 100MHz: > -26dB
Overrange indicator
Safety certified
Switchable attenuation
Switchable bandwidth limit
Cable length 1.5m (THDP & TMDP), 1.8m (P52xxA)

Applications

Floating measurements
Switching power supply design
Motor drive design
Electronic ballast design
CRT display design
Power converter design and service
Power device evaluation
BNC interface (P5200A probes)
TekVPI interface (TMDP and THDP Series probes)
TekProbe interface

Certifications

EN 61010-031
UL 61010-031 listed
CAN/CSA-C22.2
IEC 61010-031
IP20 Rating
CAT II
