RS PRO Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, Green LED, 32/50/125V ac,, Кнопочный переключатель

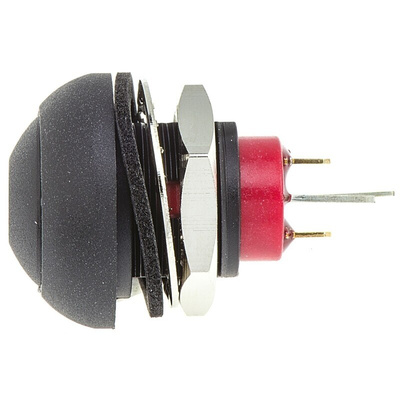

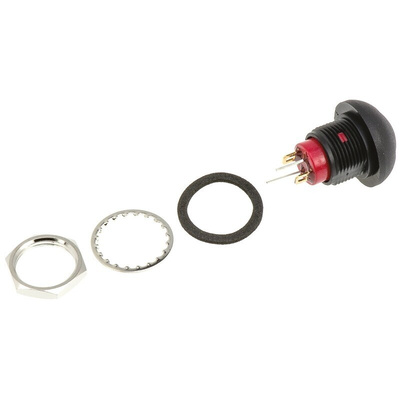

RS PRO Single Pole Single Throw (SPST) Momentary Green LED Miniature Push Button Switch, IP67, 13.6 mm (Dia.), Panel

Control your circuit with this single pole single throw (SPST) momentary green LED (light-emitting diode) miniature push button switch from RS PRO. You'll find it in commercial premises such as industrial plants, food manufacturing lines and electronics facilities.
You can install this sub-miniature illuminated push button switch by soldering it into place at +350°C for a maximum of five seconds. Alternatively, it's suitable for panel mounting onto most surfaces. It's easy to tell when there's power running through the circuit, as the push-button lights up green.
Built to last, this hardwearing component has a maximum mechanical life of one million cycles. It's IP67 (Ingress Protection) rated, which means it's protected against ingress from dust and debris, as well as immersion in water of up to one metre for 15 minutes. You can use the switch in machinery, arcade games or as a reset button.

Features and Benefits

• Black actuator colour
• Dome actuator shape
• Cap actuator type
• Black case colour
• Contact AC voltage rating of 32 V, 125 V
• Single Pole Single Throw (SPST) contact configuration
• Contact current rating of 400 mA at 32 V AC
• Contact DC voltage rating of 50 V
• Gold-plated silver contact material
• Illuminated
• IP (Ingress Protection) rating of IP67
• Green LED colour
• Panel mounting type
• Panel cut out size of 13.6 mm (diameter)
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant
• Momentary switch operation
• Solder terminal type
• Voltage rating of 32/50/125 V AC
