RS PRO Miniature Push Button Switch, Momentary, PCB, DPDT, 20V, IP67, Кнопочный переключатель

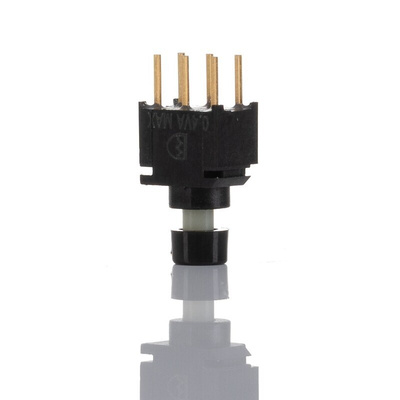

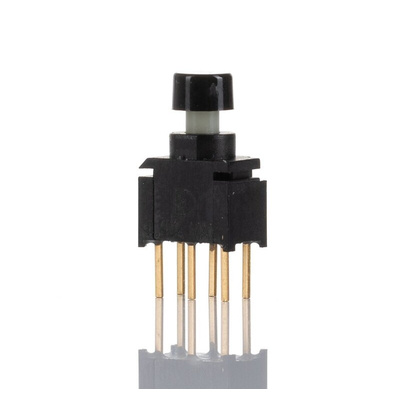

RS PRO ON-(ON) Momentary Ultra Miniature Push Button Switch (0.4VA@ 20V)

The RS PRO ultraminiature switch is a robust and reliable DPDT (Double Pole Double Throw) push button switch with ON-(ON) momentary action.
Constructed with a strong Glass filled Nylon flame retardant case and actuator to standard UL94V-0 and sealed including an internal O-ring protecting against solder and cleaning processes creating a hardwearing and resilient push button switch.
The ultraminiature switch features Gold plated Copper contacts avoiding the risk of contact oxidisation and maintaining a secure and reliable conductivity throughout its mechanical life for a push button switch ideal for a wide range of environments and applications including automotive, networking equipment, small instrumentation and controls.

Features and Benefits

• Ultraminiature switch


• Push button actuator


• ON-(ON) momentary action


• Gold plated contacts and terminals


• Mechanical Life 40,000 cycles


• Contact Rating of 0.4VA @ 20V AC or DC


• Contact Resistance below 100m Ω typ. Initial @ 2-4V DC, 100mA


• Insulation Resistance of 500MΩ min.


• Dielectric Strength of 500Vrms minimum


• Operating Temperature range of -30°C to 85°C

Standards and Approvals: RoHS compliant
