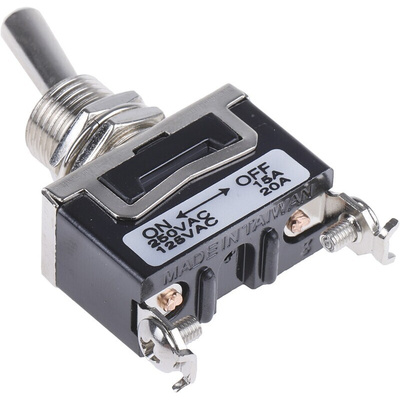

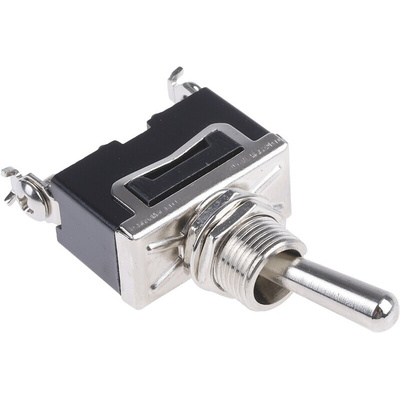

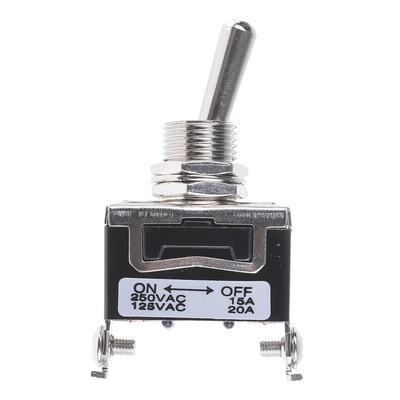

RS PRO Toggle Switch, Panel Mount, On-None-Off, SPDT, Screw Terminal, 28V dc, Тумблер

RS PRO SPDT Toggle Switch, Latching, Panel Mount

One of our most straightforward components, the RS PRO SPDT (single pole double throw) toggle switch is used to turn a circuit on and off. It's latching design means that once the toggle is moved from one position to the other, it stays that way. This makes it's suitable for a wide range of applications such as lighting, radio equipment and computing.

It has a minimum insulation resistance of 2000 MΩ at 500 V DC (volts direct current), and a minimum dielectric strength of 500 Vrms (voltage regulator modules) at sea level. The switch has an overall length of 17 mm. There's a contact resistance of 20 mΩ.

As part of our RS PRO range, it's been tested by leading engineers for reliability and durability. The latching switch is gold-and-silver-plated for effective conduction and performance. It's panel-mounted, too, so it's easy to install onto your wall or desired surface.

Features and Benefits

• Latching toggle switch
• SPDT contact configuration
• Latching switch
• Contact current rating of 20 A @ 28 V DC
• Panel mounting
• Screw actuator terminal
• Length of 17 mm
• Contact resistance of 20 mΩ

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
