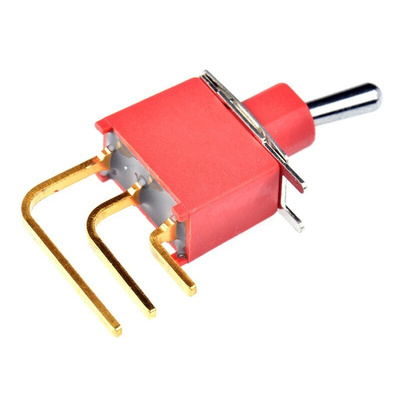

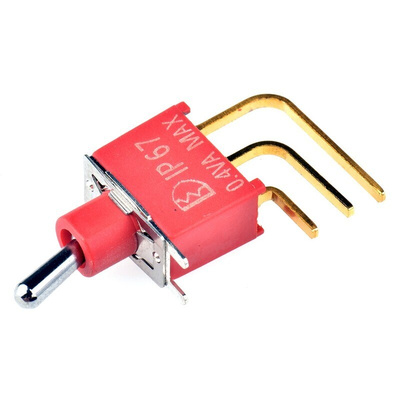

RS PRO Toggle Switch, PCB Mount, On-(On), SPDT, Through Hole Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, IP67, PCB

The RS PRO SPDT (single pole double throw) toggle switch lets you complete a circuit with ease. It comes in a latching design so, once it's been switched on, it will stay that way until it's switched off again – no need for continuous compression. You'll find it used primarily in commercial and industrial settings, such as factories and workshops.

The unit has a PCB-mount (printed circuit board) and a through-hole terminal. The actuator is made from chromium-plated brass to ensure it's hardwearing and resists corrosion. It has a length of 7.62 mm.

Built to last, it has a mechanical life of roughly 30,000 cycles. It will operate in extreme temperatures, ranging from -30°C to +85°C. The component comes with an IP67 rating, meaning it's protected against dust, dirt and water. RoHS compliant, it contains minimal hazardous materials and is also lead-free.

Features and Benefits

• SPDT (single pole double throw) toggle switch
• Latching switch operation
• Contact current rating of 400 mA @ 20 V DC
• PCB (printed circuit board) mount
• Through-hole terminal
• IP rating of IP67 for water and dust protection
• Actuator length of 7.62 mm
• Chromium-plated brass actuator
• Contact resistance of 10 mΩ
• Gold plated copper alloy contacts
• Operating temperature range of -30°C to +85°C
• Mechanical life of 30,000 cycles
• RoHS compliant for minimal hazardous materials
• Lead-free
