RS PRO Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, Тумблер

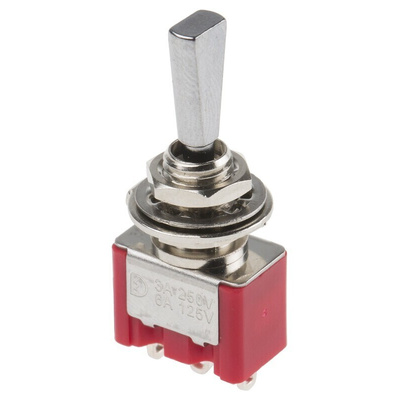

RS PRO SPST PCB Mount Water Resistant Miniature Toggle Switch 250V

A high-quality sealed water-resistant toggle switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off-On action.
Constructed with a strong Stainless Steel case within a flame retardant Dially Phthalate housing holding a Chrome plated Brass switch for a tough toggle switch fit for industrial and commercial environments.
Intended for PCB mounting and designed in a latching action which means that once it is set to a position it stays in position. Featuring Silver plated terminals reducing the risk of contact oxidisation maintaining secure and reliable conductivity throughout its mechanical life.
The PCB mount toggle switch is sealed for protection against moisture and water, capable of operating at temperatures of up to 85° C and features compact dimensions of 12.90 x 7.90 x 32mm including the toggle switch. A hardwearing toggle switch ideal for busy circuit boards.

Features and Benefits

• Toggle switch


• On-Off-On positions


• PCB mount


• Solder tag termination


• Make and break cycle


• Water resistance of 100 cycles minimum at 100mm


• Contact resistance of 10mΩ max


• Operating temperature of -30°C to 85°C


• Dially phthalate (DAP) case UL94V-0


• Chrome plated Brass actuator


• Stainless Steel housing


• Silver plated contacts


• Minimum insulation resistance of 500MΩ


• Minimum dielectric strength of 1000 Vrms


• Mechanical life of 20,000 cycles

Standards and Approvals: RoHS compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
