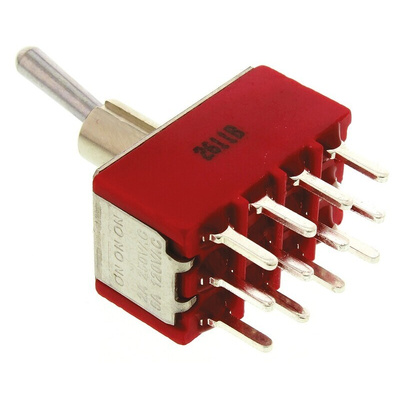

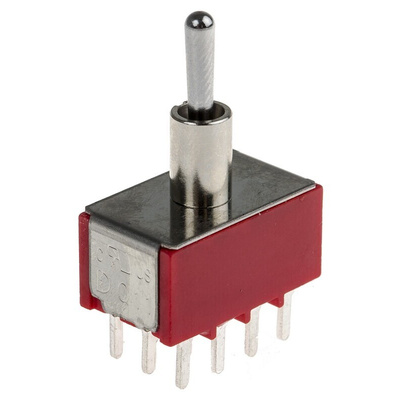

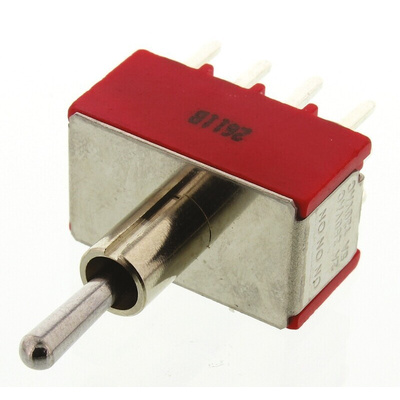

RS PRO Toggle Switch, PCB Mount, On-On-On, 4PDT, Through Hole Terminal, Тумблер

RS PRO 4PST PCB Mount Miniature Toggle Switch 250V

A high quality and reliable toggle switch with a 4 Pole Single Throw (4PST) configuration designed for an On-On-On action.
Constructed with a strong Stainless Steel case within a flame retardant Dially Phthalate housing holding a Chrome plated Brass switch for a tough toggle switch fit for industrial and commercial environments.
Intended for PCB mounting and designed in a latching action which means that once it is set to a position it stays in position. Featuring Silver plated terminals reducing the risk of contact oxidisation maintaining secure and reliable conductivity throughout its mechanical life.
The PCB mount toggle switch is sealed for protection against moisture, capable of operating at temperatures of up to 85° C and features compact dimensions of 21.59 x 12.70 x 36.57mm including the toggle switch. A hard wearing and consistent toggle switch ideal for busy circuit boards.

Features and Benefits

• PCB through hole mount


• Toggle switch


• Make and break cycle


• Contact resistance of 10mΩ max


• Operating temperature of -30°C to 85°C


• Dially phthalate (DAP) case UL94V-0


• Chrome plated Brass actuator


• Stainless Steel housing


• Silver plated contacts


• Minimum insulation resistance of 1000MΩ


• Minimum dielectric strength of 1000 Vrms


• Mechanical life of 40,000 cycles

Standards and Approvals: RoHS compliant
