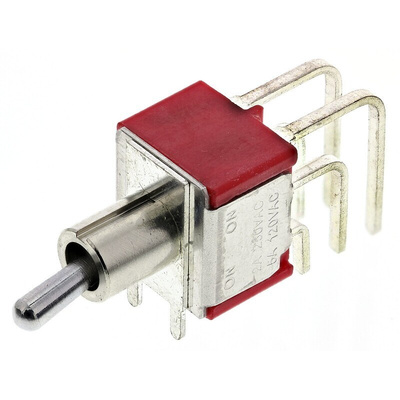

RS PRO Toggle Switch, PCB Mount, On-(On), DPDT, Through Hole Terminal, Тумблер

RS PRO DPDT Toggle Switch, Latching, PCB

Looking for a latching switch that won't take up much space on your control panel? This RS PRO miniature toggle only needs a 6.35 mm cut-out diameter, so it's nice and compact. It has through-hole terminals for creating a strong and reliable connection on your PCB (printed circuit board). This double pole, double throw switch has three toggle positions for flexible use.
With a durable stainless steel housing and a chrome-plated brass actuator, this component is a hardwearing option for appliances and machinery you use frequently. The electrically insulating DAP (diallyl phthalate) case and choice of plated silver or gold contact material make it a reliable option for commercial and industrial equipment.
Electrical engineers, electronics manufacturers and hobbyists use this type of toggle switch. You'll find it used on instrumentation, medical and telecommunication equipment.

Features and Benefits

• Actuator length of 5.08 mm
• Chromium-plated brass actuator material
• Double pole, double throw (DPDT) contact configuration
• Contact current rating of 5 A at 250 V AC
• Silver-plated brass contact material
• Contact resistance of 10 mΩ
• Operating temperature range of -30°C to +85°C
• Mechanical life of 40000 cycles
• Printed circuit board (PCB) mounting type
• Panel cut out size of 6.35 mm (diameter)
• RoHS (Restriction of Hazardous Substances) and lead-free standards met
• Latching switch operation
• Through-hole terminal type
