RS PRO Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Terminal, Тумблер

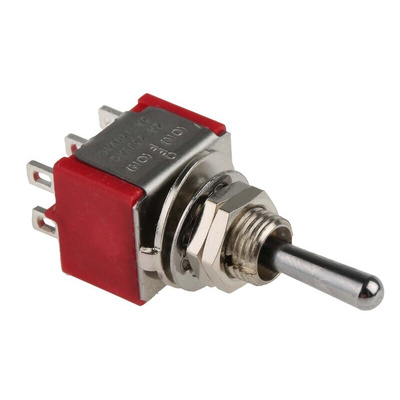

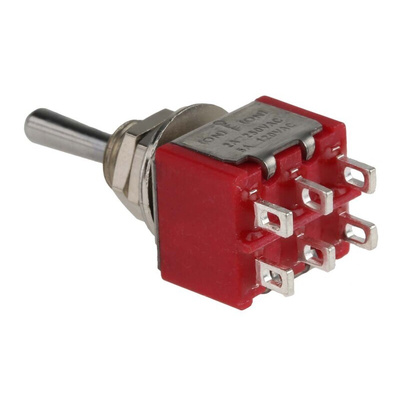

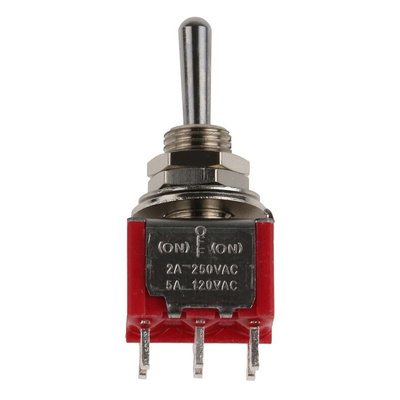

RS PRO DPDT Toggle Switch, (On)-Off-(On), Panel Mount

Use this double pole double throw (DPDT) toggle switch to simultaneously energise two different circuits with a single energy source. Featuring low contact resistance, this handy miniature version is part of our trusted RS PRO range. You can quickly and easily panel-mount it for added convenience.

Made from robust stainless steel, this lead-free ON-OFF-ON switch is fitted with silver-plated contacts. It includes a chromium-plated brass actuator and has a contact current rating of 5 A. Plus, the contact resistance is low at 10 mΩ.

You'll find switches like this one used to allow or cut off electrical currents. Other settings they're commonly used in include automation or electrical application. RS PRO has a range of related accessories on offer, too, including panel mounts, plating panels and toggle switch boots.

Features and Benefits

• DPDT Miniature toggle switch
• Panel-mount with solder type terminal
• Contact resistance of 10 mΩ
• Silver-plated brass contact material
• Panel cut out diameter of 6.35 mm
• Operating temperature range of -30°C to +85°C
• Chromium-plated brass actuator material
• Mechanical life of 40000 cycles
• Contact current rating of 5 A @ 250 V AC
• Actuator length of 10.41 mm
• (On)-Off-(On) switch operation
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
