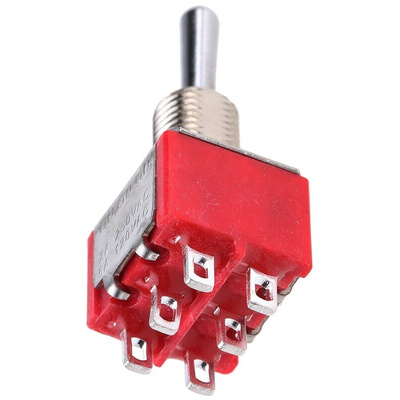

RS PRO Toggle Switch, Panel Mount, On-On-On, DPDT, Solder Terminal, Тумблер

RS PRO DPDT Toggle Switch, On-On-On, Panel Mounting

If you need a compact switch that won't take up too much space on your control panel, try this one from RS PRO. It only requires a panel cut-out diameter of 6.35 mm, making it a good choice for use in tight spaces. For flexible use, this double pole, double throw switch has three toggle positions.


Thanks to its durable stainless steel housing and chrome-plated brass actuator, this component is a good choice for frequently used appliances and machinery. It also has an electrically insulating DAP (diallyl phthalate) case and silver-plated brass contact material, making it a reliable option for commercial and industrial equipment.


You'll commonly find this type of toggle switch used on medical, instrumentation and telecommunication equipment. It's often used by electrical engineers, electronics manufacturers and hobbyists.

Features and Benefits

• Actuator length of 10.41 mm


• Chromium-plated brass actuator material


• Double pole, double throw (DPDT) contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30°C to +85°C


• Mechanical life of 40,000 cycles


• Panel mounting


• Panel cut out size of 6.35 mm (diameter)


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• On-On-On switch operation


• Solder terminal type

Dimensional Drawing

RS Pro Datasheet
