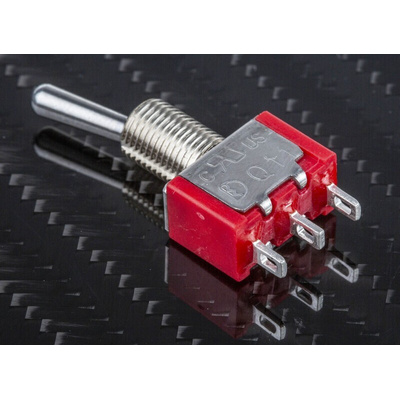

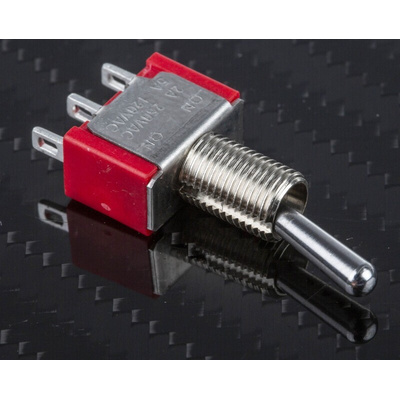

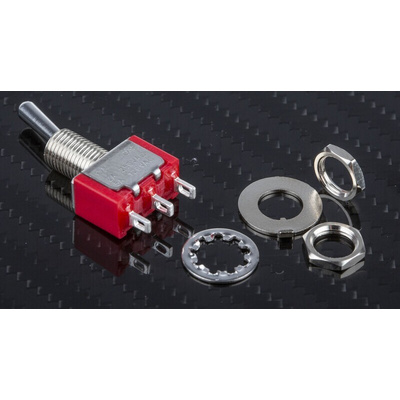

RS PRO Toggle Switch, Panel Mount, On-On, SPDT, Solder Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, Panel Mount

This handy RS PRO single pole double throw (SPDT) toggle switch can be used to energise two different circuits at one time from a single source of energy. This miniature version can be panel mounted and has low contact resistance.

Fabricated from stainless steel, the ON-ON switch also has a chromium-plated brass actuator. It's available with either gold- or silver-plated contacts and is lead-free. The toggle has a contact resistance of 10 mΩ and a contact current rating of 2 A. As it is latching, it doesn't require continuous compression.

Toggle switches are common electrical components. They either allow or cut off electrical current and can be used for any automation or electrical application. RS PRO offers a complete range of toggle switch accessories, including panel mounts, plating panels and toggle switch boots.

Features and Benefits

• SPDT latching, miniature toggle switch
• Panel-mount with solder type terminal
• Contact resistance of 10 mΩ
• Silver-plated brass contact material
• Panel cut out diameter of 6.35 mm
• Operating temperature range of -30°C to +85°C
• Chromium plated brass actuator material
• Mechanical life of 40000 cycles
• Contact current rating of 2 A
• Panel cut out size of 6.35 mm
• Actuator length of 10.41 mm
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant
