RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 250V ac, Тумблер

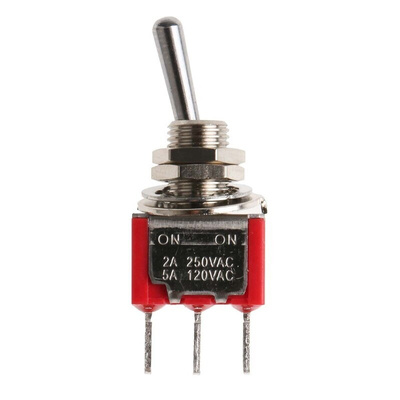

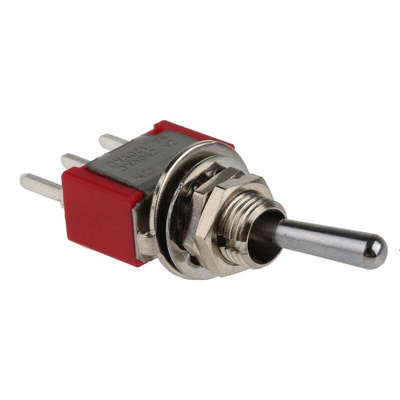

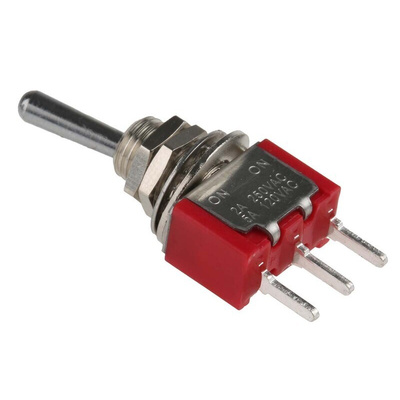

RS PRO SPDT Toggle Switch, Latching, PCB

If you need to supply energy to two different circuits at once from a single source, consider this RS PRO single pole double throw (SPDT) toggle switch. Made from robust stainless steel, the ON-ON switch features a chromium-plated brass actuator for durability. It's miniature in size and is printed circuit board (PCB) mounted, so the switch is soldered directly to the circuit board.

The switch features silver-plated contacts and is lead-free. The toggle has a contact resistance of 10 mΩ and a contact current rating of 5 A @ 250 V AC. As it's latching, you don't need to continually push it to maintain the current.

Toggle switches either activate or terminate electrical current and you can use them for any automation or electrical application. They're common electrical components. RS PRO offers a complete range of toggle switch accessories, including panel mounts, plating panels and toggle switch boots.

Features and Benefits

• SPDT latching, miniature toggle switch
• Panel circuit board (PCB) mounted
• Contact resistance of 10 mΩ
• Silver-plated brass contact material
• Panel cut out diameter of 6.35 mm
• Operating temperature range of -30°C to +85°C
• Chromium-plated brass actuator material
• Mechanical life of 40000 cycles
• Contact current rating of 5 A @ 250 V AC
• Actuator length of 10.41 mm
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
