RS PRO Toggle Switch, PCB Mount, On-(On), SPDT, Through Hole Terminal, Тумблер

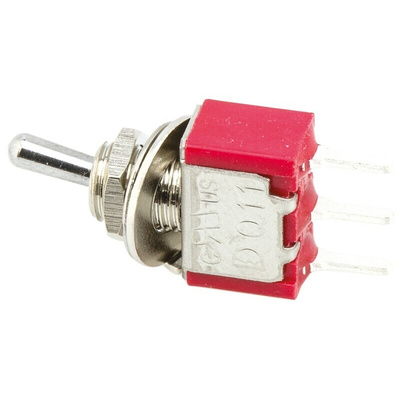

RS PRO SPDT Toggle Switch, Latching, PCB

If you want a switch that you can mount to a PCB (printed circuit board), turn to this latching switch from RS PRO. It's compact enough for use in tight spaces, as it only needs a cut-out diameter of 6.35 mm.


The switch is built to last as the housing is made of durable stainless steel and the actuator is made of chromium-plated brass. This makes the unit highly resistant to corrosion and rust, so it will hold up in harsh industrial environments. The silver-plated brass contacts also make it a reliable option for industrial and commercial equipment.


The switch has through-hole terminals, so you'll be able to create a strong and reliable connection to your PCB. Hobbyists, electrical engineers and electronics manufacturers alike commonly use this type of toggle switch on instrumentation, medical and telecommunication equipment.

Features and Benefits

• Actuator length of 5.08 mm


• Chromium-plated brass actuator material


• Single pole, double throw (SPDT) contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30°C to +85°C


• Mechanical life of 40,000 cycles


• Printed circuit board (PCB) mounting type


• Panel cut out size of 6.35 mm (diameter)


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• Latching switch operation

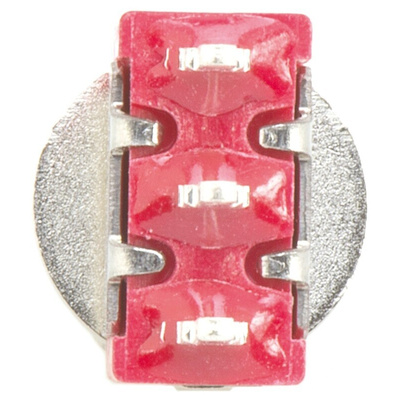

• Through-hole terminal type

RS Pro Datasheet
