RS PRO Toggle Switch, Panel Mount, On-(On), SPDT, Solder Terminal, Тумблер

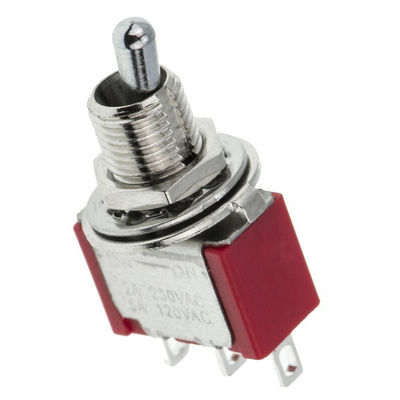

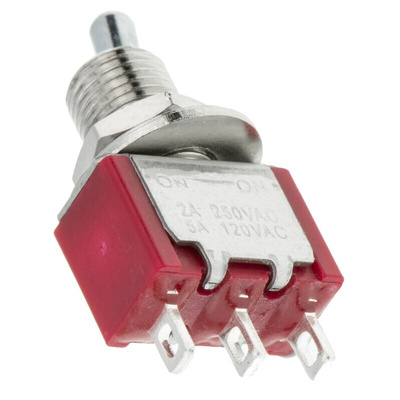

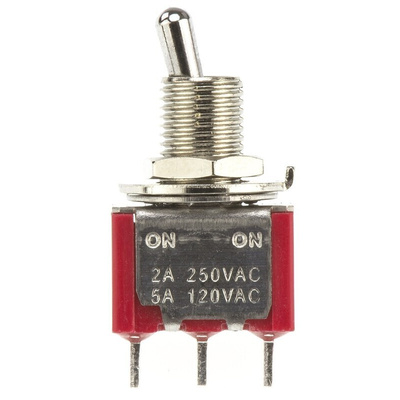

RS PRO SPDT Toggle Switch, Latching, Panel Mounting

If you need a reliable latching switch that you can mount to a panel, choose this one from RS PRO. It needs a cut-out diameter of just 6.35 mm, so it's a compact option for panel installations where space is limited.


The switch is long-lasting as the housing is made of durable stainless steel and the actuator is made of chromium-plated brass. This makes it resistant to corrosion and rust in tough industrial environments. It also has a DAP (diallyl phthalate) case for electrical insulation and silver-plated brass contacts for good conductivity, making it a reliable choice for industrial and commercial equipment.


This type of switch is frequently used on medical, instrumentation and telecommunication equipment. It's a popular choice among electrical engineers, electronics manufacturers and DIY enthusiasts alike.

Features and Benefits

• Actuator length of 5.08 mm


• Chromium-plated brass actuator material


• Single pole, double throw (SPDT) contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30°C to +85°C


• Mechanical life of 40,000 cycles


• Panel mounting type


• Panel cut out size of 6.35 mm (diameter)


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• Latching switch operation


• Solder terminal type

RS Pro Datasheet
