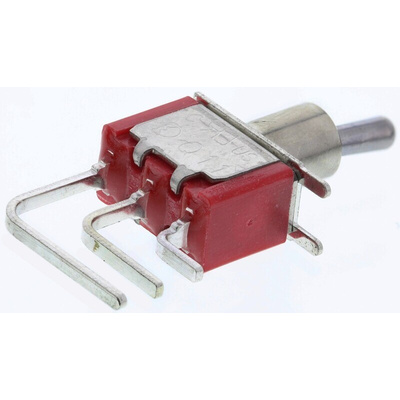

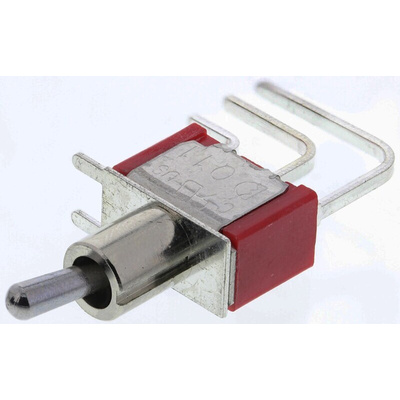

RS PRO Toggle Switch, PCB Mount, On-(On), SPDT, Through Hole Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, PCB

If you need a toggle switch that mounts to a PCB (printed circuit board), turn to this one from RS PRO. This component is a hardwearing, corrosion-resistant option for frequently used appliances and machinery, as the actuator is made of chrome-plated brass and the housing is made of durable stainless steel.


The switch needs a cut-out diameter of only 6.35 mm, so it's a good choice for use in compact applications. It also has through-hole terminals that allow you to create a strong and reliable connection on your PCB. For safety, the case is made of electrically insulating DAP (diallyl phthalate), and the contacts are made from highly conductive silver-plated brass for high-quality performance.


Electronics manufacturers, electrical engineers and hobbyists often use this type of toggle switch. You'll find it used on telecommunication, medical and instrumentation equipment.

Features and Benefits

• Actuator length of 5.08 mm


• Chromium-plated brass actuator material


• Single pole, double throw (SPDT) contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30°C to +85°C


• Mechanical life of 40,000 cycles


• Printed circuit board (PCB) mounting type


• Panel cut out size of 6.35 mm (diameter)


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• Latching switch operation


• Through-hole terminal type
