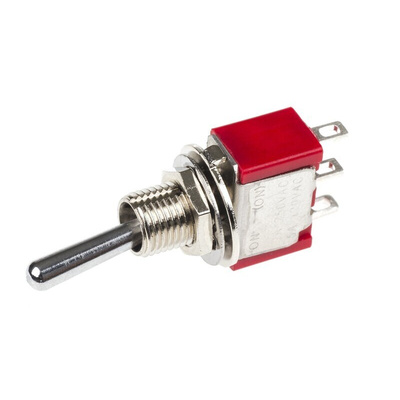

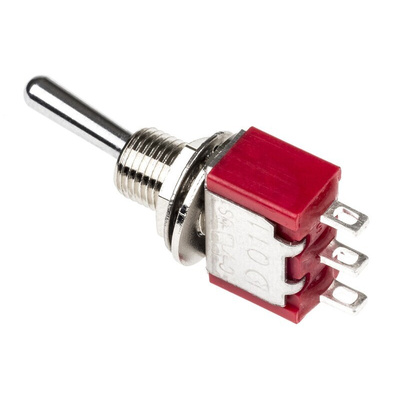

RS PRO Toggle Switch, Panel Mount, On-(On), SPDT, Solder Terminal, Тумблер

RS PRO SPDT Toggle Switch, On-(On), Panel Mounting

Want a latching switch that won't take up a lot of space on your control panel? This one from RS PRO is compact as it requires a panel cut-out diameter of only 6.35 mm to fit it.


The housing is made of stainless steel and the actuator is made of chrome-plated brass for durability and resistance to corrosion. This means the part is ideal for use on frequently used equipment in harsh environments. It also has a DAP (diallyl phthalate) case for electrical insulation and silver-plated brass contacts for good conductivity, ensuring a safe and reliable connection.


You'll commonly find this type of switch used on medical, instrumentation and telecommunication equipment. It's often used by hobbyists as well as professional electrical engineers and electronics manufacturers.

Features and Benefits

• Actuator length of 10.41 mm


• Chromium-plated brass actuator material


• Single pole, double throw (SPDT) contact configuration


• Contact current rating of 5 A at 250 V AC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Operating temperature range of -30°C to +85°C


• Mechanical life of 40,000 cycles


• Panel mounting


• Panel cut out size of 6.35 mm (diameter)


• RoHS (Restriction of Hazardous Substances) and lead-free standards met


• On-(On) switch operation


• Solder terminal type

Dimensional Drawing

RS Pro Datasheet
