RS PRO Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, Тумблер

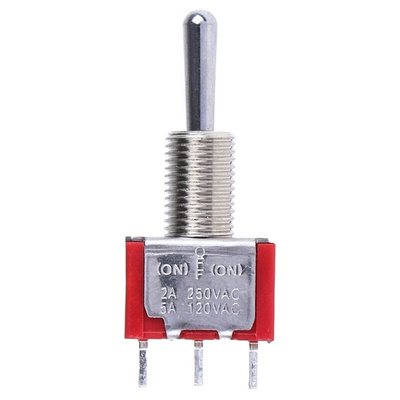

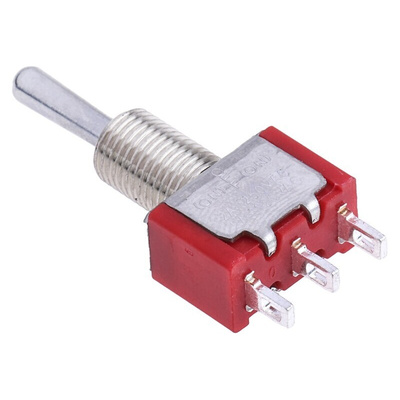

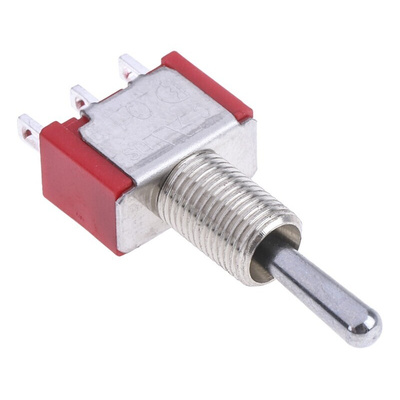

RS PRO SPDT Toggle Switch, On-Off-On, Panel Mount

Use this single pole double throw (SPDT) toggle switch to energise two different circuits at once using a single energy source. Featuring a low contact resistance of only 10 mΩ, this miniature version is part of our trusted RS PRO range. For extra convenience, you can quickly and easily panel-mount it.

Made from robust stainless steel, this lead-free ON-OFF-ON switch comes with silver-plated contacts. It's also fitted with a chromium-plated brass actuator and has a contact current rating of 5 A. Plus, it doesn't require continuous compression as it's latching.

Toggle switches are commonly used for allowing or cutting off electrical currents. Other applications you'll find them in include automation or electrical application. We offer a range of additional related components, including panel mounts, plating panels and toggle switch boots.

Features and Benefits

• SPDT latching, miniature toggle switch
• Panel-mount with solder type terminal
• Contact resistance of 10 mΩ
• Silver-plated brass contact material
• Panel cut out size of 6.35 mm
• Operating temperature range of -30°C to +85°C
• Chromium-plated brass actuator material
• Mechanical life of 40000 cycles
• Actuator length of 10.41 mm
• Contact current rating of 5 A @ 250 V AC
• On-Off-On switch operation
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS Pro Datasheet
