RS PRO Toggle Switch, Panel Mount, (On)-Off-(On), SPDT, Solder Terminal, Тумблер

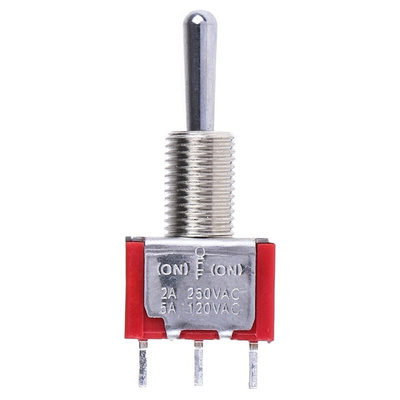

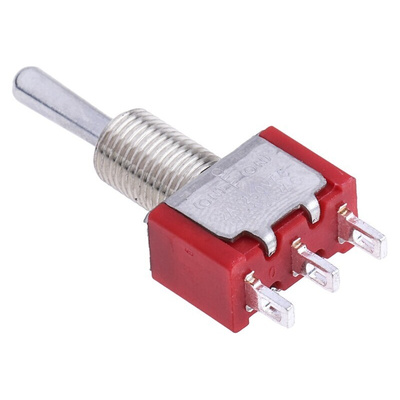

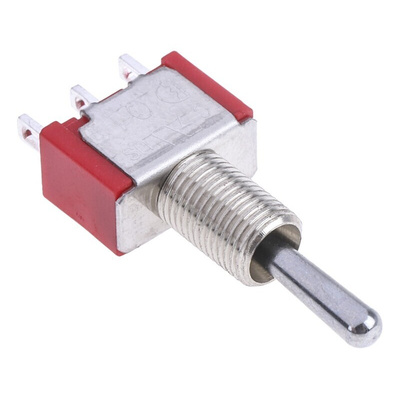

RS PRO SPDT Toggle Switch, (On)-Off-(On), Panel Mount

Use this single pole double throw (SPDT) toggle switch to energise two different circuits at once using a single energy source. Part of our trusted RS PRO range, this tried-and-tested miniature version boasts low contact resistance. For added convenience, it can quickly and easily be panel mounted.

The lead-free, durable stainless steel ON-OFF-ON switch comes with silver-plated contacts. Fitted with a chromium-plated brass actuator, it has a contact current rating of 5 A and a contact resistance of 10 mΩ. Finally, you won't need to apply continuous compression.

You'll see toggle switches like this one used for allowing or cutting off electrical currents. They can also be used for any automation or electrical application. We have a range of toggle switch accessories on offer, too, including panel mounts, plating panels and toggle switch boots.

Features and Benefits

• SPDT momentary switch, miniature toggle switch
• Panel-mount with solder type terminal
• Contact resistance of 10 mΩ
• Silver-plated brass contact material
• Panel cut out size of 6.35 mm
• Operating temperature range of -30°C to +85°C
• Chromium-plated brass actuator material
• Mechanical life of 40000 cycles
• Actuator length of 10.41 mm
• Contact current rating of 5 A @ 250 V AC
• (On)-Off-(On) switch operation
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
