RS PRO Toggle Switch, Panel Mount, On-Off, SPST, Solder Terminal, 28V dc, Тумблер

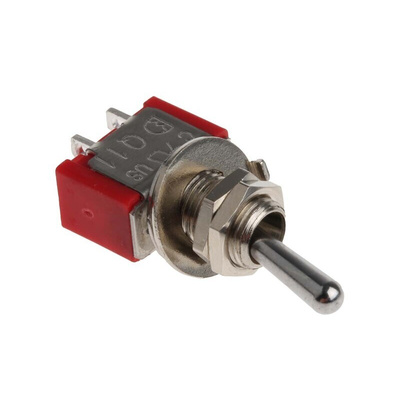

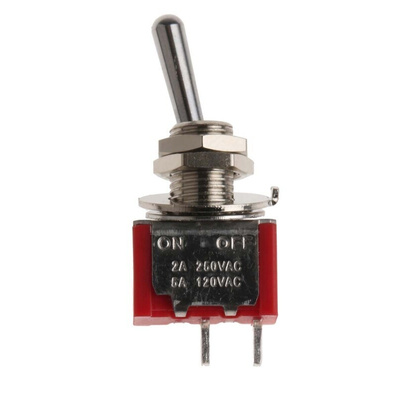

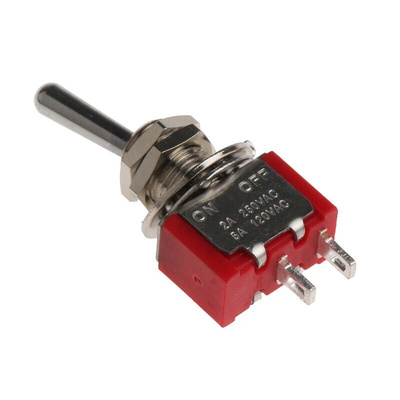

RS PRO SPST Toggle Switch, Latching, Panel Mount

You can use this RS PRO single pole single throw (SPST) toggle switch to turn a single circuit on or off. Toggle switches are common electrical components, and are found in automation and electrical applications.

You can panel-mount this miniature switch (it needs a panel cut-out size of 12.7 mm x 6.86 mm) and it has low contact resistance. Made from stainless steel, it has a chrome-plated brass actuator. It either has gold- or silver-plated contacts and is lead-free. Featuring a contact resistance of 10 mΩ it also has a contact current rating of 5 A @ 28 V DC. As a latching switch, you won't need to continuously compress it.

RS PRO offers a complete range of toggle switch accessories that have been stringently tested, including panel mounts, plating panels and toggle switch boots.

Features and Benefits

• SPST latching, miniature toggle switch
• Panel-mount with solder type terminal
• Contact resistance of 10 mΩ
• Silver-plated brass contact material
• Panel cut out diameter of 6.86 mm
• Operating temperature range of -30°C to +85°C
• Chrome plated brass actuator material
• Mechanical life of 40000 cycles
• Contact current rating of 5 A @ 28 V DC
• Panel cut out size of 12.7 mm 6.86 mm
• Actuator length of 10.4 mm
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
