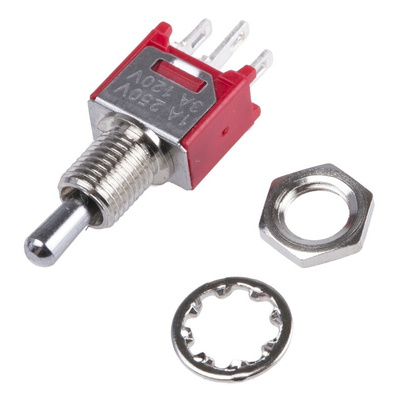

RS PRO SPDT Toggle Switch, On-Off-On, Panel Mount
This RS PRO SPDT (single pole double throw) toggle switch lets you turn a circuit on and off. Typically found in commercial and industrial settings, this type of switch is used in lighting, computing and telecommunications equipment.
It comes with a chromium-plated brass actuator that's hardwearing and resistant to tarnishing. With an actuator length of 5.33 mm and a cutout diameter of 4.95 mm, it's classed as a sub-miniature switch and will fit into small spaces. This component features a handy panel mount, so it can be easily secured to an equipment panel, external case or enclosure. It has a contact current rating of 3 A @ 120 V AC.
Like all of our RS PRO products, it's been tested to ensure it's hardwearing and reliable. The switch has a mechanical life of around 30,000 cycles and works in extreme temperatures ranging from -40°C to +85°C.
Features and Benefits
• Toggle switch
• SPDT (single pole double throw) contact configuration
• On-Off-On switch operation
• Contact current rating of 3 A @ 120 V AC
• Panel mounting
• Solder panel terminal
• Cutout diameter of 4.95 mm
• Actuator length of 5.33 mm
• Chromium-plated brass actuator
• Contact resistance of 20 mΩ
• Mechanical life of 30,000 cycles
• Operating temperature range of -40°C to +85°C
• RoHS compliant for minimal hazardous materials
• Lead-free
• Panel cut out diameter of 4.95 mm
• Silver-plated brass contacts
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
RS PRO Datasheet
