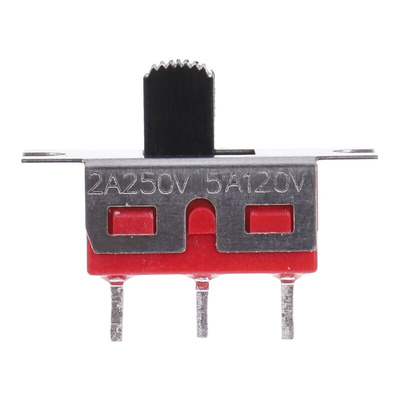

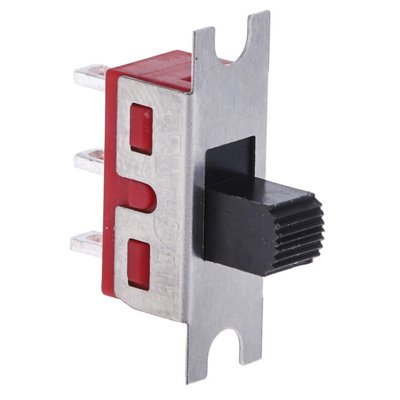

RS PRO Panel Mount Slide Switch SPDT Latching 5 A @ 28 V dc Top, Переключатель

RS PRO Panel Mount Slide Switch Single Pole Double Throw (SPDT) Latching 5 A at 28 V DC Top

Control your circuits with this slide switch from RS PRO. It offers great flexibility of use, as it has a latching operation that can be moved into three positions. The front face of the button has a grooved surface, so it's easy to use even with greasy or gloved hands.


The switch housing is made of stainless steel, so it's strong and resistant to corrosion. The actuator is also made of hardwearing nylon for added durability. Its mechanical lifespan of 30,000 cycles means it will last a long time and will require minimal maintenance. This type of slide switch is often used on networking equipment, domestic appliances and medical instrumentation.

Features and Benefits

• Nylon actuator material


• Top actuator type


• Single pole double throw (SPDT) contact configuration


• Contact current rating of 5 A at 28 V DC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Dimensions of 12.7 (length) x 6.6 (width) x 6.35 mm (depth)


• Operating temperature range of -30°C to +85°C


• Mechanical life of 30,000 cycles


• Panel mounting


• Latching switch operation


• Solder terminal type


• Voltage rating of 28 V DC

RS Pro Datasheet
