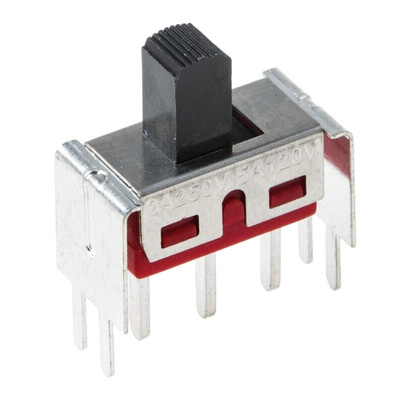

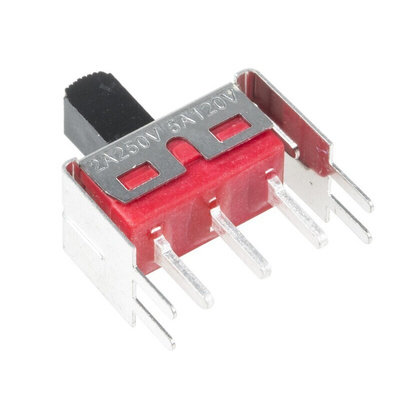

RS PRO Through Hole Slide Switch SPDT Latching 5 A @ 28 V dc Top, Переключатель

RS PRO Through Hole Slide Switch Single Pole Double Throw (SPDT) Latching 5 A at 28 V DC Top

Need a slide switch to control your circuits? This one from RS PRO has a latching operation that can be moved into three positions for flexible use. The switch is also user-friendly thanks to the grooved front face of the switch, which makes it easy to use even with gloved or greasy hands.


The switch housing is made of stainless steel, so it's strong and resistant to corrosion. The actuator's nylon material is hardwearing and abrasion-resistant for added durability. Its long mechanical lifespan of 30,000 cycles means it requires minimal maintenance and can withstand frequent use. You'll find this type of slide switch used on a wide range of installations, from networking equipment to medical instrumentation.

Features and Benefits

• Nylon actuator material


• Top actuator type


• Single pole double throw (SPDT) contact configuration


• Contact current rating of 5 A at 28 V DC


• Silver-plated brass contact material


• Contact resistance of 10 mΩ


• Width of 8 mm


• Depth of 9.3 mm


• Operating temperature range of -30°C to +85°C


• Mechanical life of 30,000 cycles


• Latching switch operation


• Through-hole terminal and mounting type


• Voltage rating of 28 V DC
