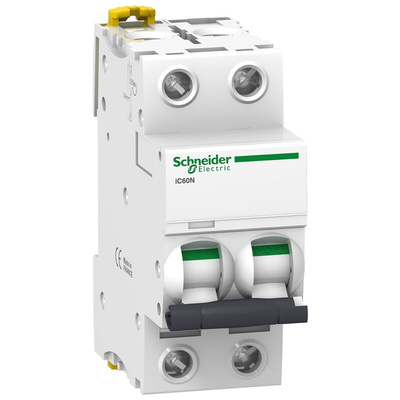

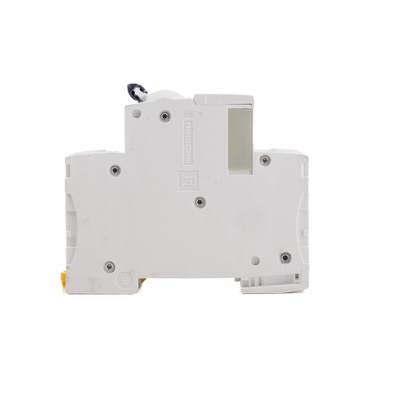

A9F74204, Schneider Electric Acti 9 iC60N MCB, 2P, 4A Curve C, 400V AC, 125V DC, 6 kA Breaking Capacity

Schneider Electric Acti9 i60N MCBs 2 Pole

Acti 9 iC60N series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload currents it also protects people against indirect contact with TN and IT neutral systems. Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that your installation is safe and compliant with all relevant safety standards which demonstrates to your customers that you use industry-approved materials and best practices. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts.
VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime

Benefits and Features

Downstream circuit is always safe
Class insulation ensures continuous protection for both operators and unqualified persons.
Insulated terminals (IP20)
Highly durable with robust connections that provide twice the standard tightening
Provide greater continuity of service thanks to VisiTrip.

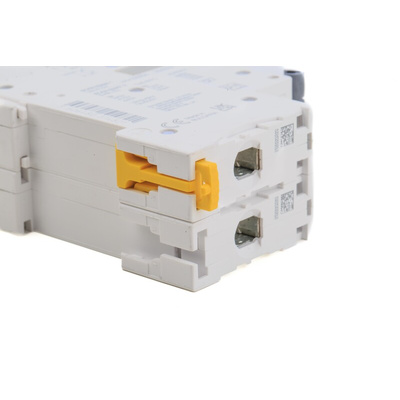

Double clip dismounting with comb busbar in place

Standards

IEC 60898 - Relates to Low Voltage Circuit Breakers for use in household and similar
Installations. In the UK traditionally known as miniature circuit breakers
(MCB’s).
IEC 60947-2 Relates to Low Voltage Circuit Breakers for use in industrial and similar
Installations. In the UK traditionally known as moulded case circuit breakers
(MCCB’s) and also air circuit breakers (ACB’s).

Q: What is the differences in the Tripping Curves B, C, and D?

A: Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

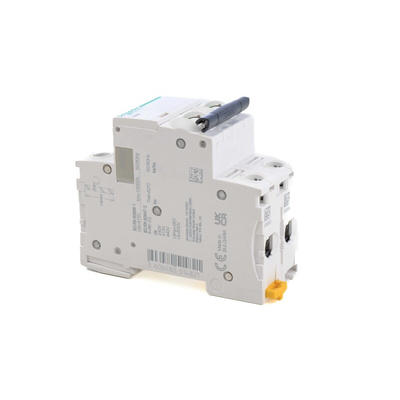

Schneider Electric iC60N Series MCB, 4A, 2P Poles - A9F74204

This Schneider Electric Acti 9 iC60N series circuit breaker is a high quality miniature circuit breaker designed for use in various applications within the automation, electronics, Electrical, and mechanical industries. With a focus on efficiency and reliability, this MCB offers exceptional performance to meet your specific requirements.

Features & Benefits

• DIN Rail Mount design for easy installation and integration
• Thermal Magnetic Tripping Mechanism ensures prompt and accurate circuit protection
• type C Tripping Characteristics for optimal safety and performance
• Green Premium Product, demonstrating environmental sustainability
• 2P configuration for versatile usage in different setups
• Rated AC voltage ranges from 100 to 415V, catering to multiple voltage requirements
• Suitable for various utilisation categories, conforming to industry standards

Applications

• Ideal for distribution in electrical systems
• Perfect for protecting circuits in industrial automation setups
• Suitable for use in control panels and machinery
• Ensures safety in commercial and residential electrical installations

Can it handle different voltage ranges effectively?

Yes, the Acti 9 iC60N series circuit breaker is designed to efficiently manage voltage ranges from 100V to 415V.

Will it provide reliable circuit protection in industrial settings?

Yes, the MCB's thermal-magnetic tripping mechanism ensures prompt circuit protection in industrial environments.

Standards

EN/IEC 60947-2, EN/IEC 60898-1.
