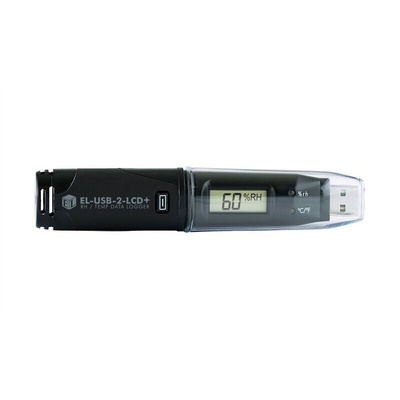

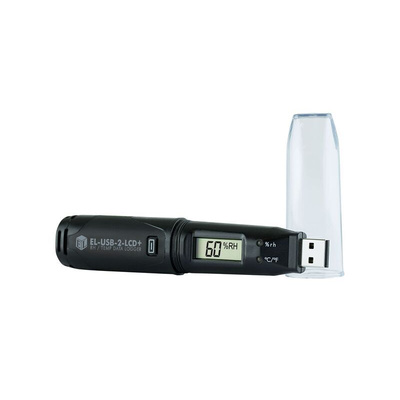

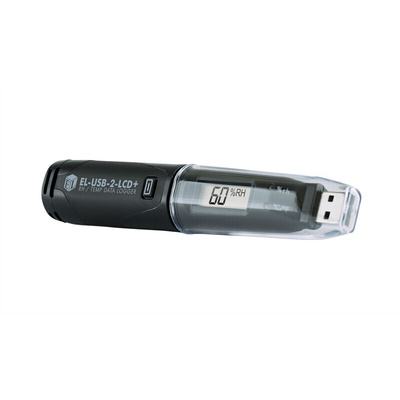

Lascar EL-USB-2-LCD+ Temperature & Humidity Data Logger, USB

Lascar Data Loggers

The Lascar EL-USB-2-LCD+ USB standalone data logger measures and stores over 16,000 temperature and humidity readings between -35°C and 80°C (-31°F to +176°F). It has 0% to 100% RH range at a resolution of 0.5°C (1°F) and 0.5% RH. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both, temperature and humidity. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for a detailed analysis.

Supplied with
1/2 AA battery and wall mount clip

Features and Benefits

The measurement ranges between -35°C and 80°C (-31°F and 176°F)
Temperature measurement accuracy is ±0.45°C
Humidity measurement accuracy is ±2.05%RH
Logging rates between 10 seconds and 12 hours
Number of readings per channel is 16379
Immediate and delayed logging start
User-programmable alarm thresholds for both, temperature and humidity
Status indication via red/green LEDs
Battery life is up to 2 years
Supplied with a 1/2AA lithium metal battery
High contrast LCD with two and a half digit temperature and humidity display function
Export to Excel functionality

Applications

Facilities management
Housing and business premises
Outside environmental data
Agriculture and animal welfare
Veterinary
Museums and exhibitions

Certifications

IP67 Rated

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Quick Start Guide

Datasheet

UN38.3 Lithium Battery Test Summary
