Instruments Direct ATMOS Impeller Anemometer, 42m/s Max, Measures Air Velocity, Humidity, Temperature, Анемометр

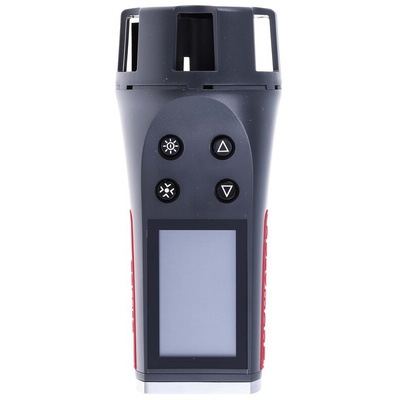

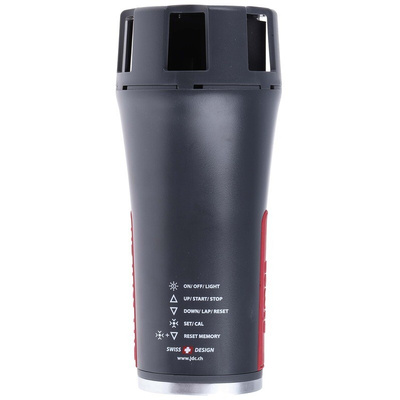

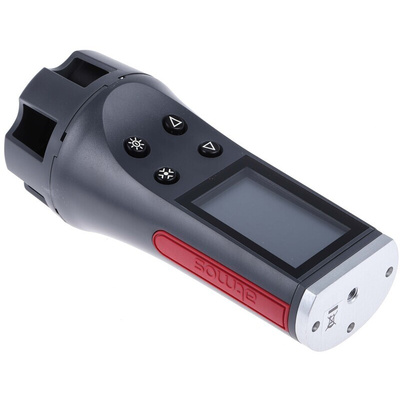

SKYWATCH® atmos Temperature & RH Anemometer

From Instruments Direct, the new and improved Skywatch Atmos anemometer, is a user-friendly, multi-functional meter designed for measuring wind speed, temperature and humidity. The comprehensive meter provides balanced instant readings without compromising on performance. Constructed from high-quality lightweight plastics the Skywatch Atmos anemometer floats even if accidentally dropped into the water. Easy to use, this extremely accurate instrument is ideal for farming, agriculture and any avid outdoor enthusiast.

Robust in design, the Skywatch Atmos uses a multi-directional rotating turbine to deliver precise readings according to Swiss standards, even at low speeds. The innovatively designed turbine allows exact measurements to be collected even without being pointed directly into the wind. An aluminium bottom plate allows the Atmos anemometer to be mounted onto a tripod for even more versatility.

With only 4 control keys the Atmos anemometer is extremely easy to use. Simply select from one of the 3 functions, wind speed, temperature or humidity and select the mode you wish the data to be displayed. The modes are then displayed in specific units of measurement. For wind speed, km/h, mph, m/s, fps, knots and bft. For Temperature measurement, °C, °F, °C perceived and °F perceived. For humidity %rH. With an LCD display and backlight function, all recordings are clearly shown on the front screen, even in low light conditions.

Data displayed - Modes

Wind Speed
Instantaneous
Maximum
Average

Temperature
Current
Maximum
Average
Minimum
Perceived

Humidity
Instant
Maximum
Average
Minimum
Dew point

Features and Benefits

• Hand-held and lightweight
• Waterproof
• Official Swiss calibration
• Easy- to - read display
• Minimum, average and maximum: duration from 3s to 24h or stopwatch
• Multifunction turbine
• Precision rotating vane to deliver exact readings according to Swiss standards
• Aluminium bottom plate for tripod attachment (” thread)
• Replaceable LR6 batteries (AA)
• Low battery indication
• Backlight display
• Supplied with a turbine protection cap and cover

Applications

Rotating vane anemometers are used to measure environmental conditions quickly and accurately. The information and data they provide are vital in a wide range of applications and environments. They are essential for reporting, forecasting and planning and more importantly health and safety. Some of the more common are

• Farming – indicating weather conditions before crop spraying
• Sailing, boating and windsurfing – determine wind speed, wind direction and gust
• Weather stations and meteorological studies – atmospheric conditions

FAQ

Q - Is there a recommended replacement battery?
A - Yes, the Atmos Handheld anemometer uses two LR6 batteries for its power supply. See RS part number 744-2199

Supplied with

Protective cap for the impeller and carry pouch.

Atmos Data Sheet

Atmos User Manual
