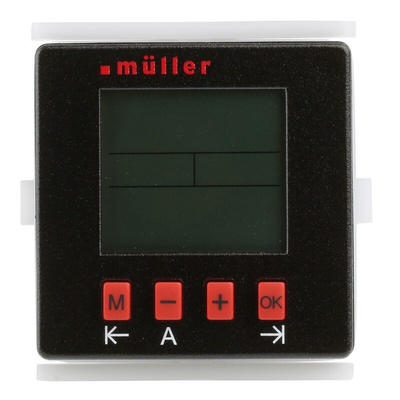

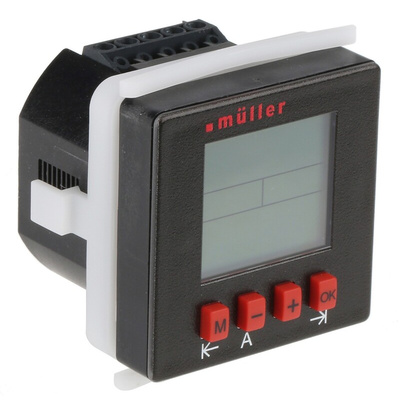

SC 24.10 pro, Muller Digital Surface Mount Timer Switch 230 V, 1-Channel

24 Hour / 7 Day 1 Channel Timeswitch - SC 24.10 pro

The SC 24.10 pro from Hugo Muller incorporates a text based user interface which includes a self explanatory menus/symbols, consequently making the device easy to use/program. Both daily and weekly programs are possible when using this device with a minimum interval time to switch of 1 minute. Additional features Hugo Muller have included comprise of a 6 year power reserve (enabling the device to be programmed when disconnected), an unlimited program security via E² - PROM and the ability to display two lines of text via the user interface.

Single channel timeswitch
Daily and weekly programs possible
46 individual memory locations
Minimum interval to switch is 1 minute
Switching capacity of up to 8A
Permanent by date / holiday function capability
Manual permanent mode (channel key)
Manual override
Automatic sorting of switching times
Unrestricted block programming
Fully automatic daylight saving time
Elapsed time and pulse counter
Pulse function
External input (manual override)
Security by PIN code

Muller Time switch

The Finder interface relay module is an innovative, ultra-compact electromechanical device equipped with a 230VAC/DC coil and an SPDT 1C/O contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC. The high number of approvals make it useful for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space-saving is essential.

Features and Benefits

• DIN rail and wall mounting
• Minimum interval to switch is 1 minute
• Switching capacity of up to 8A
• Time base is quartz crystal
• Permanent by date/holiday function capability
• Manual permanent mode (channel key)
• Manual override
• Automatic sorting of switching times
• Unrestricted block programming
• Fully automatic daylight saving time
• Elapsed time and pulse counter
• Pulse function
• External input (manual override)
• Security by PIN code
• Screw terminal connection
• Ambient temperatures range between -10°C and 50°C

Applications

• Ideal for outdoor and street lighting
• Control of lighting, heating and ventilation

Certifications

• IP20 rated
• DIN EN 60529

Digital

24hr/7 Day 1 Channel Timer

Time Switch Instruction Manual

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
