Keysight Technologies U1233A Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated, Мультиметр

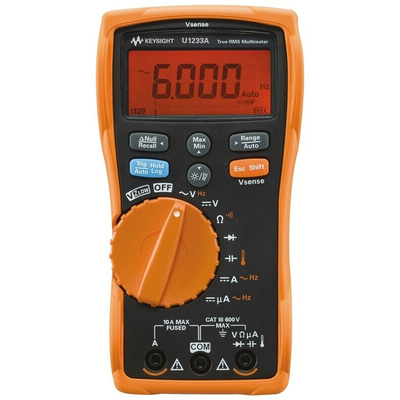

Keysight U1233A Digital Multimeters

Keysight U1233A Series handheld digital multimeters are designed to perform in poor environmental conditions and worst-case scenarios. With the built in flashlight, the ergonomic shaped handheld digital multimeter allows you to single handedly illuminate the test area while selecting measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. For improved safety the U1233A series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audible (beeper) alerts. Vsense performs non-contact voltage detection. This battery powered handheld digital multimeter features true rms readings with a 6000 count, 3 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits

• Built-in LED flashlight to illuminate test area
• Flashing backlight as additional visual alert during continuity tests in noisy areas
• Vsense to perform non-contact voltage detection
• Data logging capability (stores up to 10 readings)
• IR-to-USB connectivity to transfer data to PC for record
• Operating temperature: -10 → 55 °C, 0% → 80% RH
• Dimensions (H x W x D) 169 x 86 x 52 mm
• Battery (included) 4 x 1.5V AAA Alkaline battery
• Battery life: 500 hours
• Display resolution: 6,000
• Auto/manual ranging
• Analog bar graph
• AC bandwidth 45Hz → 1kHz
• True RMS

The U1233A series digital multimeters measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance

Non-contact voltage detection with Vsense

The Vsense, a unique feature found in the U1233 Series performs non-contact voltage detection. It delivers more safety while making measurements in dangerous working environments by avoiding any contact with hot or live wires. Upon detection of voltage, it produces a unique combination of beeping alert and blinking LED light to make measurements more efficiently – especially in a dark or noisy environment.

Does this come with a calibration certificate?

Yes - Certificate of Calibration will be available.

Supplied with

Test Lead Set, Quick Start Guide, 4 x 1.5V Batteries

Keysight Technologies Multimeter, 600mV to 600V AC/DC Voltage Measuring Range, Built-In Flashlight - U1230 Series - U1233A

Get the measure of your electronic devices using this digital multimeter from Keysight Technologies. It reads the values of various parameters in your electric circuits, including voltage, current, resistance and temperature. Thanks to the ridges around the rotary dial, it won't give you the slip when you're making adjustments. The built-in Vsense feature means you can put this unit to the test remotely without touching live wires, so there's no risk of electric shocks.

• Battery life of 500h for long-lasting performance
• Wide operating temperature range between -10°C and +55°C for use in harsh settings
• Built-in LED flashlight for easy testing in low-light environments

Applications

• Electrical engineering
• Consumer electronics
• Maintenance and repair

What are the voltage, current, and temperature measurement capabilities of this multimeter?

This multimeter has a voltage measurement range between 600mV and 600V AC/DC and a current measurement range between 60μA and 10A AC/DC, so it's a versatile choice for your low and high-power devices. It can measure temperatures between -40°C and +1372°C, making it suitable for use in demanding industrial environments.

Keysight

U1230 Series Handheld Digital Multimeters Quick Fact Sheet
