P01196731, Chauvin Arnoux CA 5231 Handheld Digital Multimeter, True RMS, 600A ac Max, 600A dc Max, 1000V ac Max - UKAS Calibrated, Мультиметр

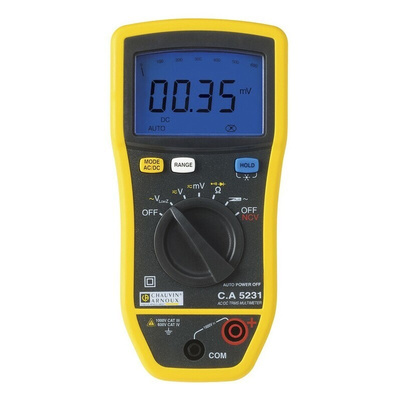

Chauvin Arnoux CA5231 True RMS Digital Multimeter

The Chauvin Arnoux CA5231 true RMS digital Multimeters are ideal for the needs of electrical installers, self-employed electricians and heating or air-conditioning specialists. Compact and simple, they are exceptionally easy to read thanks to their large backlit display including a bargraph count of 6,000. Their built-in shockproof protection also makes them rugged instruments.
There are two "Off" positions for greater effectiveness, including one which allows no-contact voltage detection. The screen lights up when near to a live cable. If it is hooked up to a current clamp, it can measure currents up to 600 A in total safety.
The Chauvin Arnoux CA5231 is designed for carrying out general electrical measurements, enabling users to test AC/DC voltage (this includes LowZ voltage), AC/DC current, resistance and tests continuity and diode.

What are the key features of the Chauvin Arnoux CA5231 Digital Multimeter?

• CAT IV 600V / CAT III 1,000V
• TRMS measurements
• Large 6,000-count backlit display (digit height: 8 mm)
• 61-segment bargraph
• Compact casing with built-in shockproof protection
• Double OFF position
• NCV (no-contact voltage detection)
• VLow Z low-impedance voltage measurement to avoid stray voltages.
• Measurement up to 1,000 V
• 60mV range
• AC or DC current measurement up to 600 A with current clamp (1mv/A AC or DC) with direct reading of the measurement in Amperes
• IP54
• Compatible with the multi-function mounting accessor

What are the typical applications?

• Electrical installers
• Electricians
• heating & air-conditioning specialists

What’s included?

• The CA 5231 Digital Multimeter
• 2 measurement leads equipped with test probes
• 9 V alkaline batter
• Operating manual

Chauvin Arnoux

5231/33 Datasheet
