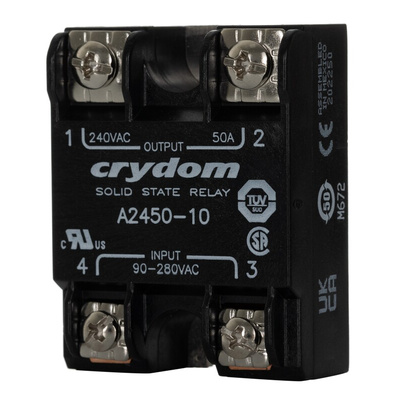

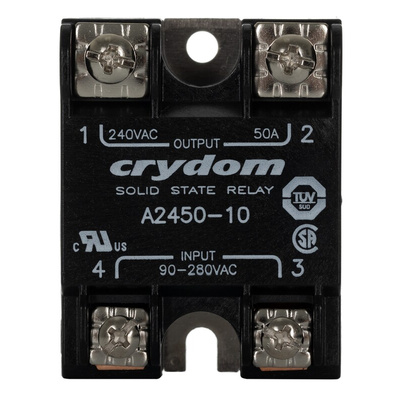

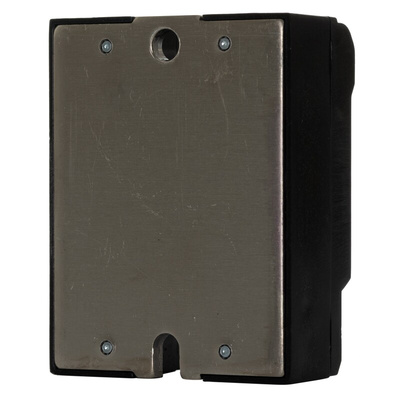

A2450-10, Sensata / Crydom Series 1 240 VAC Series Solid State Relay, 50 A Load, Panel Mount, 280 V rms Load, 280 V ac Control, Реле

Sensata | Crydom Solid-State Relay, SPST Contact Configuration, SCR Output - Series 1 - A2450-10

Ready to turn your devices on and off in the blink of an eye? Reach for this solid-state relay from Sensata | Crydom. It mounts directly onto your PCB and acts as the go-between for your power source and electronics. Anti-rotation barriers keep this SSR firmly in place in vibrating conditions for steady operation. Rest assured, this unit has an MTBF of up to 1328 years for long-lasting use. This device is a go-to in the manufacturing and telecommunications sectors.

Features & Benefits

• Instantaneous turn-on boots up devices in a snap
• Light weight of 74.9g to place minimal strain on your PCB
• Performs reliably in demanding environments, thanks to a wide operating temperature range of -40°C to +80°C

Can I use this product with a heat sink?

Yes. To minimise the risk of overheating, you can tack on a heat sink (703-4561).

What's the rated load current of this SSR?

This SSR has a rated load current of 50A, so you can trust it to handle heavy-duty electrical loads with ease.

Approvals

UL; CSA; VDE

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Series 1 Solid State Relay Data Sheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - A2450-10
