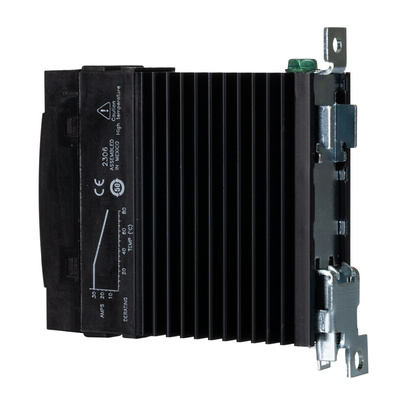

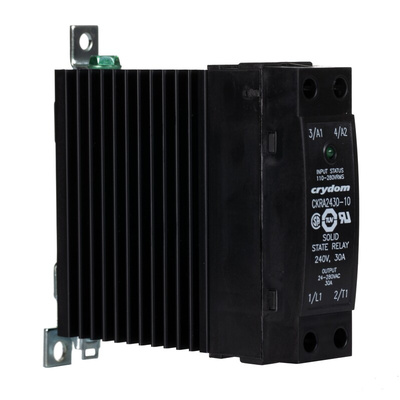

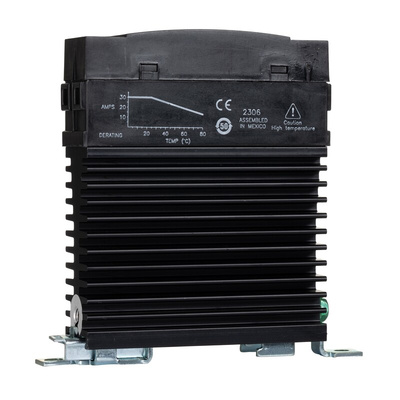

CKRA2430-10, Sensata / Crydom CKR24 Series Solid State Relay, 30 A Load, DIN Rail Mount, 280 V rms Load, 280 V ac Control, Реле

Sensata | Crydom Solid-State Relay, SPST Contact Configuration, SCR Output - CKR24 Series - CKRA2430-10

Looking for a product with rapid-fire switching abilities? Choose this solid-state relay from Sensata | Crydom for the job. It delivers a rapid turn-on time of just 10ms, activating your equipment in a flash. The unit is an ideal option for low-power devices, thanks to its operating voltage range of 24 to 280V AC. As the SSR has no moving parts, it's protected against wear for a long service life. Screw terminals mean you can wire it up in a snap without the need for special tools. You can use this SSR for industrial automation, medical equipment and robotics applications.

Features & Benefits

• DIN rail mounting makes installation quick and simple
• Light weight of 280g to place minimal strain on your setup
• Green LED indicator for at-a-glance status monitoring
• Compact dimensions of 22.5 (L) x 81.3 (D) x 81.9mm (H) to maximise space on your rail

Can I use this product in harsh industrial conditions?

Yes. This SSR is safe to use at temperatures between -40°C and +80°C, so it's just the thing for use in harsh environments.

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

CKR24 Series Data Sheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - CKRA2430-10

Line Drawing - CKRA2430-10
