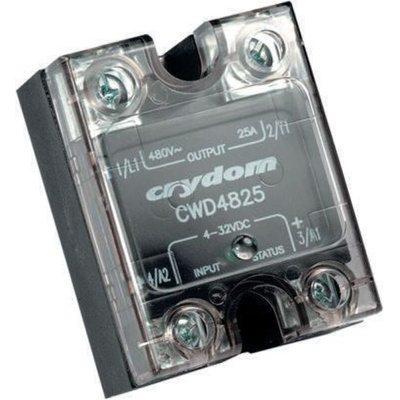

CWD48125P, Sensata / Crydom CW Series Solid State Relay, 125 A Load, Panel Mount, 660 V ac Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, SPST Contact Configuration, 1/2 Cycle Turn-On Time - CW48 Series - CWD48125P

Grab this solid-state relay from Sensata | Crydom for effective electrical switching in your automated setup. It switches your circuit on and off without moving parts, so it stands up to wear for long-lasting use. The unit has the mettle to withstand harsh environments, as its baseplate is made of robust aluminium for resistance to corrosion and impact. This SSR doesn't break a sweat in challenging conditions, thanks to a broad operating temperature range between -40°C and +80°C. You'll find it used for medical equipment, power transformers and heating elements.

Features & Benefits

• Compact dimensions of 57.3 (H) x 44.5 (W) x 22.6mm (D) make it a space-efficient choice
• Light weight of 81.53g to minimise strain on your equipment
• Broad load voltage range between 48 and 660V AC for versatility
• Fire-retardant housing self-extinguishes in 10 seconds or less to boost safety

Does this unit have any monitoring features?

Yes. This device has an inbuilt green LED that signals its operating status, making monitoring fast and easy.

How long does it take for this SSR to turn on?

It has a maximum turn-on time of half a cycle to get your operations up and running in a flash.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
