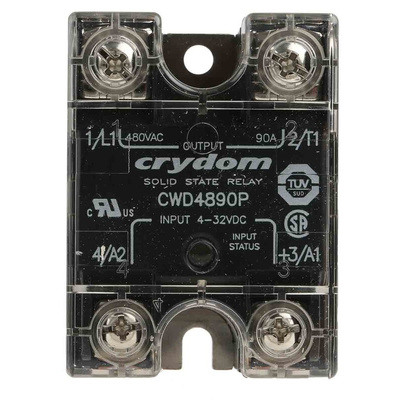

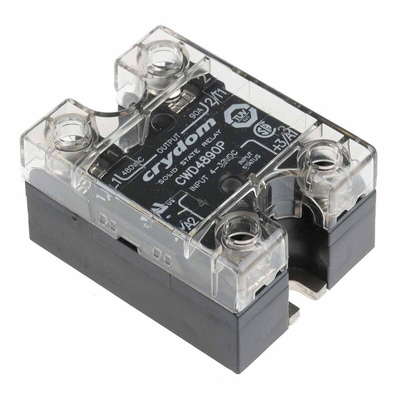

CWD4890P, Sensata / Crydom CW SERIES Series Solid State Relay, 90 A Load, Panel Mount, 660 V ac Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, SPST Contact Configuration, Zero-Cross Switching Type - CW48 Series - CWD4890P

Take control of your circuits with this solid-state relay from Sensata | Crydom. As it opens or closes a circuit by passing a voltage across a semi-conducting material, there are no moving parts to wear away and break over time. An LED status indicator allows you to check its operating status at a glance. The relay is panel-mounted for simple installation and maintenance, so it's a hassle-free option. You can use this SSR for applications such as HVAC systems, elevators and industrial machinery.

Features & Benefits

• Broad operating temperature range between -40°C and +80°C for use in harsh conditions
• Zero-cross switching function generates less noise to avoid interference with other equipment
• Screw terminal type for fast and secure installation

Does this SSR have a cover?

Yes, there's an integrated cover that you can remove if needed. It has an IP20 rating, meaning it's touch-proof and protected against objects larger than 12mm in size.

What's the product's operating voltage range?

This SSR has a wide operating voltage range between 48 and 660V AC, making it suitable for use in low to medium-power applications.

Approvals

UL, VDE

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
