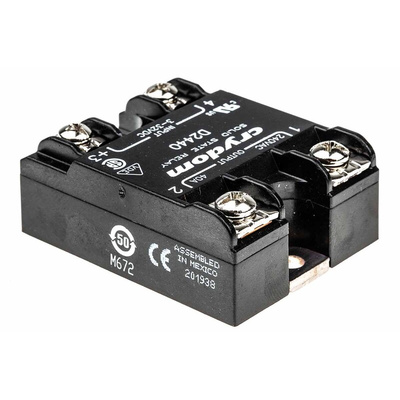

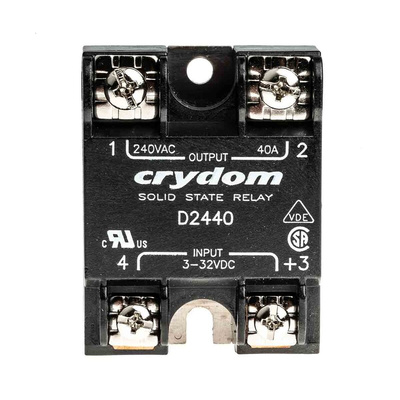

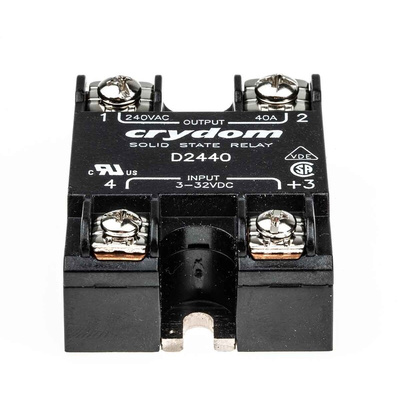

D2440, Sensata / Crydom 1 Series Solid State Relay, 40 A rms Load, Surface Mount, 280 V rms Load, 32 V dc Control, Реле

Sensata | Crydom Solid-State Relay, Screw Terminals, 40A Rated Load Current - Series 1 - D2440

Change up your automated switching devices with this solid-state relay from Sensata | Crydom. By using semiconductors to control your equipment, it offers quick switching to help you sail through system management. As the device works without moving parts, you can be sure it cuts out wear from the daily grind to give you long-lasting performance. Setting up the unit is a breeze as you can simply fix it into place on a flat surface. You'll find relays like this one used in chemical processing and plastic injection moulding systems.

Features & Benefits

• Rated load current of 40A for use in high-power systems
• Compact dimensions of 44.5 (L) x 22.6 (W ) x 57.3mm (H) to take up minimal space in your setup
• Secure screw terminals clamp down on disruption from vibrations
• Turn-on time of 1/2 cycle for quick switching
• Accepts solid and stranded wires for versatility

How long will this unit last?

This SSR has an MTBF of 11,641,553 hours at +40°C, so you can rest assured it will last a long time.

Approvals

UL; CSA; VDE

Crydom Solid State Relay and Accessories

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
