DC60S7, Sensata / Crydom Solid State Relay, 7 A Load, Surface Mount, 60 V dc Load, 32 V dc Control, Реле

Panel Mount - DC60 Series

Solid state relays with bi-polar transistor output
Ratings of 7A at 60 Vdc
AC or DC control voltage
Panel mount relay package
Screws and Saddle Clamps to allow electrical connection
4000 Vrms isolation voltage
Operation temperature of -30 → +80 °C
Thermally conductive Epoxy body housing to aid heat dissipation
NO and NC output types available

Approvals

UL, cUL

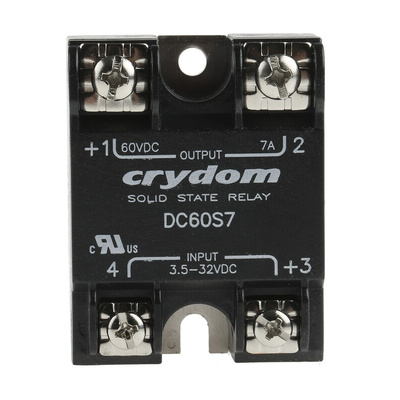

Sensata | Crydom Solid-State Relay, SPNO Contact Configuration, 7A Rated Load Current - DC60 Series - DC60S7

For reliable switching in your industrial environment, choose this solid-state relay from Sensata | Crydom. It has a rated load current of 7A, making it suitable for use in low-power applications. The aluminium baseplate is resistant to impact and corrosion for durability in harsh environments. A thermally conductive epoxy housing helps to dissipate heat, keeping your equipment running at maximum efficiency even under demanding conditions. You'll commonly find a relay like this one used with high-speed digital logic circuits and radio transmitters.

Features & Benefits

• Broad operating temperature range between -30°C and +80°C for use in challenging environments
• Flame-resistant housing is self-extinguishing in 10 seconds for safety in the event of a fire
• Light weight of 70g to place minimal strain on your equipment
• MTBF of more than 21 million hours at +40°C for long-lasting performance

What are the advantages of solid-state relays over electromechanical relays?

An SSR has no moving parts, which means less wear and tear on components. This minimises the need for maintenance and enhances its service life. SSRs also offer a faster switching time and reduced power consumption compared to electromechanical alternatives.

DC Switching

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - DC Output

Line Drawing - DC60S7
