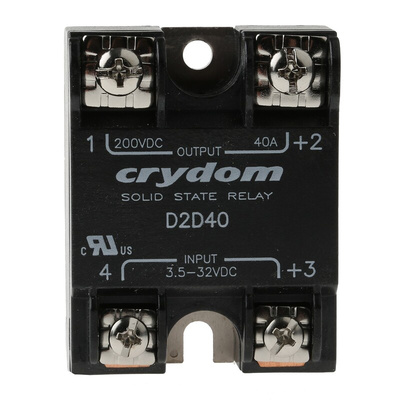

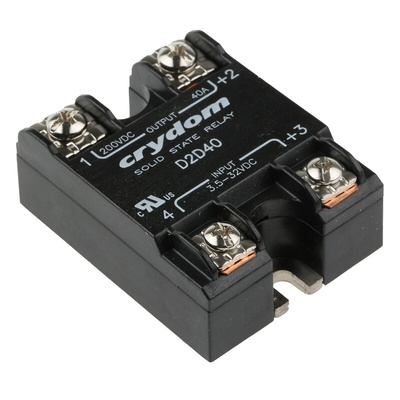

D2D40, Sensata / Crydom 1-DC Series Solid State Relay, 40 A Load, Surface Mount, 200 V dc Load, 32 V dc Control, Реле

7 to 100A dc Switching

SSRs for controlling dc loads
Extremely long operating life
MOSFET technology relays can be connected in parallel to switch higher load currents
Applications include dc motors, lamps, solenoids
Terminal Type Screw; Saddle Clamp
Operating Temperature Range -30 to +80°C
Dimensions: H22.9 x W45.7 x D58.4
Max. Input to output Capacitance: 50pF
Panel Mount
Internal over voltage protection for the SSC Series

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Sensata | Crydom Solid State Relay, 40A Rated Load Current, 1 to 200V DC Operating Voltage Range - 1-DC Series - D2D40

For reliable switching in your control system, choose this solid state relay from Sensata | Crydom. Its wide operating voltage range of 1 to 200V DC makes it compatible with a broad variety of setups. After changing an electrical input current to an optical one, the device fires the signal to a transistor, which transmits it to other components. As this product has no moving parts, there's minimal wear and tear for a long service life. You'll find units like this one in industrial controls, multiplexers and I/O subsystems.

Features & Benefits

• Wide operating temperature range between -40°C and +100°C for use in demanding environments
• Input current of 10 to 15mA for energy efficiency
• Light weight of 75.5g means it will place minimal strain on your system
• Anti-rotation barriers on the housing to ensure secure installation

Will this unit last a long time?

Yes, this unit has an MTBF of 2,441 years at +40°C and 1,317 years at +60°C, so it's a long-lasting choice.

What's the load current range of this SSR?

This SSR has a wide load current range between 1mA and 40A, making it a versatile choice.

Approvals

UL; CE; ISO

DC Switching

Datasheet

Solid State Relay - CE-Declaration of Conformity

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - DC Output Panel Mount Solid State Relays
