HD4850-10, Sensata / Crydom HA AND HD Series Solid State Relay, 50 A Load, Panel Mount, 530 V rms Load, 32 V dc Control, Реле

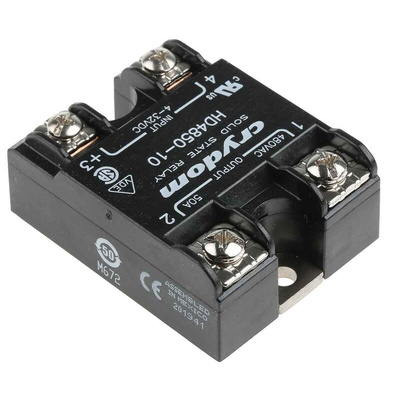

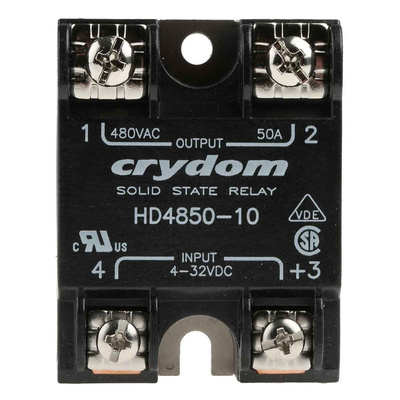

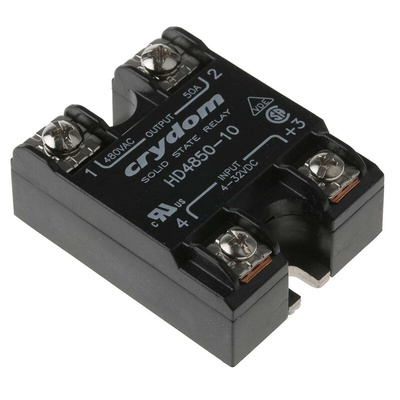

Sensata | Crydom Solid-State Relay, SCR Output, SPST Contact Configuration - HA/HD48 Series - HD4850-10

Make the move to an efficient switching solution with this solid-state relay from Sensata | Crydom. It has an SPST contact configuration, meaning it can turn a single circuit on or off. This makes it well-suited to activating and deactivating industrial machinery, lighting setups and HVAC systems. SSRs last longer than mechanical switches, as there are no moving parts and minimal risk of wear. Its screw terminals make it simple to wire up, so you can charge forward with your tasks.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C for use in extreme environments
• Compact dimensions of 57.3 (L) x 44.5 (W) 23.3mm (D) to save space in your setup
• Control voltage range between 4 and 32V DC for use in low-power systems
• Maximum turn-on time of half a cycle for lightning-fast switching

How do SSRs work?

SSRs like this one contain semi-conducting materials that naturally close the circuit when a voltage is applied across the terminals. The circuit is open when there's no power running through it.

Approvals

UL; C-UL recognised; VDE

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
