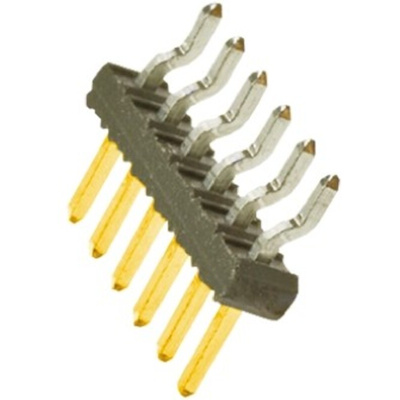

10112684-G03-06ULF, Amphenol Communications Solutions Minitek Series Right Angle Surface Mount Pin Header, 6 Contact(s), 2.0mm Pitch, 1

2.00 mm Amphenol FCI Minitek™ SMT Horizontal Un-Shrouded Headers

These Amphenol FCI Minitek™ Horizontal SMT Headers enable perpendicular Board to Board as well as Wire to Board
connections on a 2 mm grid using surface mount technology and have a Post length 4.0 mm. The horizontal SMT header is soldered at the edge of the PCB and mates with any of various different types of FCI Minitek™ receptacles plus cable and wire connectors. The components in the MinitekTM system including these SMT horizontal headers are fully intermateable.

Note

For Minitek™ DIL Crimp Housings and Receptacles see typical stock numbers 673-7641 and 673-7525 respectively.

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™

2.0mm Amphenol FCI Basics+ Connectors, Headers and Minitek™ Basics+ Connectors, Headers and Minitek™ is a 2 mm system range offering up to 38% space saving compared to 2.54 mm connector systems.

Fully intermateable across the Minitek™ Headers and Connectors range

Minitek 2mm SMT Horizontal Headers Data Sheet
