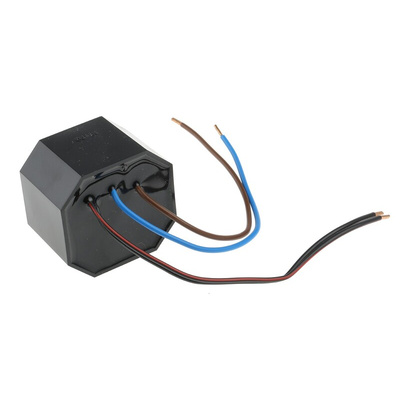

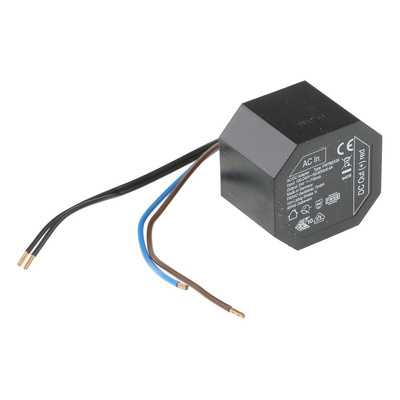

Friwo Switching Power Supply, EDV1891685RS, 24V dc, 750mA, 18W, 1 Output, 100 → 240V ac Input Voltage, Источник питания

Friwo SMT/Wall Mount, Encapsulated, Switch Mode AC-DC Power Supply - UP Series

Universal input, single output, in-wall, surface mount power supplies with a high output power and IP 64 protection. Suitable applications for these in-wall, surface mount power supplies include safety technology, water taps, shutter control, door openers and LED applications.

Constant voltage, current limited
Low standby power of ≤ 0.3 W
High output power
Continuously short circuit proof

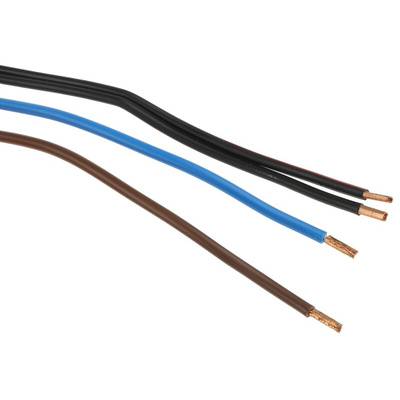

AC input: 150 mm cable, DC output: 150 mm cable
IP64 protection
EMC conforms to EN 55011, 55014, EN 55022 / B, EN 55024, FCC 41 part 15, EN 61000-3-2, EN61000-4-2 to 4-6, EN 61000-4-11

Standards

Fulfills class II SELV for the following applications: EN 60950 / IEC 60950, UL 60950, VDE

Approvals

cULus, VDE

Switch Mode - Friwo

Switchmode Power Supplies In-wall Series Data Sheet

Power Supply,Potted IP64,UP18,24V 0.75A
