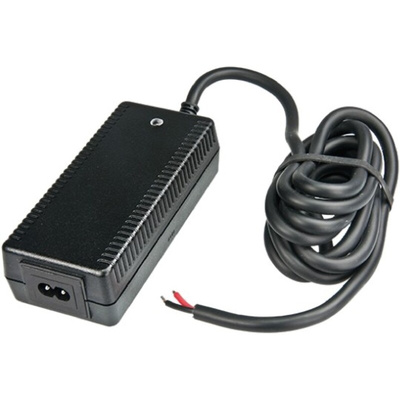

EDV1825898RS, Friwo Power Brick AC/DC Adapter 24V dc Output, 2.2A Output, Блок питания

Friwo 50W Medical Approved Single Output Switch Mode Desktop Power Supply - DT 50 Series

Medically approved 50W desk-top adaptor power supplies with a single output and 7 interchangeable output adapters. These medically approved 50W desk-top adaptor power supplies offer a low standby power of ≤ 0.5W and a low leakage current. Typical applications for these medically approved desk-top adaptor power supplies include blood analysers, patient monitors, measuring equipment, laboratory equipment, inhalers and patient lifts.

Medically approved
2-pole IEC 320, C8 socket
7 x interchangeable output connectors
Green LED indicator
Constant voltage, current limited
Low standby power of ≤ 0.75 W
Low leakage current of ≤ 10 μA
Continuously short circuit proof
EMC conforms to EN 55011, EN 55014, EN 55022/B, FCC 47 part 15, EN 61000-3-2, EN 61000-4-2 to EN 61000-4-6 and EN 61000-4-11

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217

Standards

Fulfils Class II SELV for the following applications: IEC 60601-1, UL 2601, VDE
Fulfils medical application class B / BF / CF

Approvals

VDE, cULus

Switch Mode - Friwo

Switchmode Power Supplies Medical Series Data Sheet

Power Adapter,Desk Top,Medical,24V 2.2A
