KS40-113-0000D-000, P.M.A KS40 PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 2 Output Relay, 18 → 30 V dc, 24 V ac Supply Voltage, Регулятор температуры

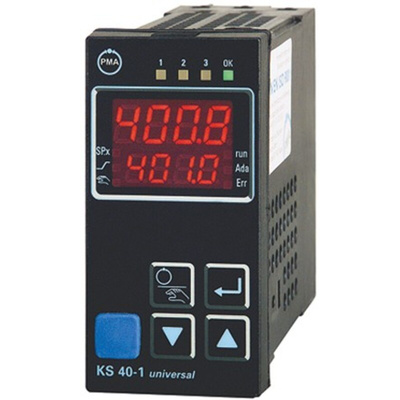

PMA KS 40-1 Temperature Controller

The universal temperature controller KS 40-1 is intended for universal, precise, and cost-effective control tasks in all branches of industry. For this, the unit provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement or as an external setpoint input.

The KS 40-1 has three process outputs that can be 3 relays or 2 relays plus a universal output. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a two-wire transmitter.

This controller is particularly well suited to the following industry applications: Furnaces and ovens, Burners and boilers, Plastics processing & Driers.

• BluePort® Front interface and BlueControl Software
• Maintenance manager and error list
• Automatic/Manual key
• Monitoring of heating current and input circuit
• Timer and programmer
• Extended limit signalling function with latch
• Type tested to EN 14597 (replaces DIN 3440), cULus

Standards

CE Certified

Supplied with
type":"Supplied with",

German Manual

PMA Temperature Controllers

Manual - Full

Datasheet

Brochure

Accessory Guide
