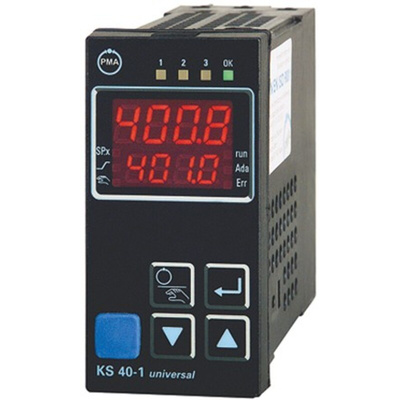

KS40-112-0000D-000, P.M.A KS40 PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 2 Output Relay, 90 → 250 V ac Supply Voltage ON/OFF, Регулятор температуры

P.M.A Temperature Controller

The P.M.A KS40 series temperature controller has a supply voltage rating ranging from 90VAC to 250VAC. This high precision controller has a width of 48mm and a height of 96mm(1/8DIN). It has two relays and mA/logic at the output. The process value signal is connected via a universal input. A supplementary analogy input can be used for heating current measurement or as an external setpoint input. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a 2-wire transmitter.
Inclusions:
German manual.

Features and Benefits

Automatic/manual key
BluePort front interface and blue control software
Extended limit signalling function with latch
Maintenance manager and error list
Monitoring of heating current and input circuit
Screw terminal
Timer and programmer

Applications

2 and 3 point control
2-stage burners
3-stage burners
Boiler pressure control
Burners and boilers
Furnaces and ovens
Modulating burners
Plastics processing and driers
Position control
Synchronisation control
Weather-compensation

Certifications

Front panel IP65 rated
Housing IP20 rated
Terminals IP00 rated
Type tested to EN 14597 (replaces DIN 3440)
UL approved
