VY1221K31Y5SQ6TV0, Vishay Single Layer Ceramic Capacitor (SLCC) 220pF 500V ac ±10% Y5S Dielectric, VY1, Through Hole +125°C Max Op. Temp., Конденсатор

X1/Y1 Ceramic Disc VY1 Series

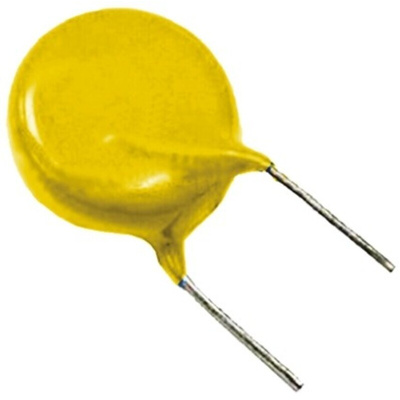

The capacitor consists of a ceramic disc which is silver plated on both sides. Connection leads are made of tinned copper clad steel having a diameter of 0.6 mm. The capacitors may be supplied with vertical (inline) kinked leads having a lead spacing of 10.0 mm, or 12.5 mm. Encapsulation is made of flame retardant epoxy resin in accordance with UL 94 V-0.

Features

- Complying with IEC 60384-14 4th edition
- High reliability
- Vertical (inline) kinked or straight leads
- Singlelayer AC disc safety capacitors

Applicatiions

- X1, Y1 according to IEC 60384-14.4
- Across-the-line
- Line by-pass
- Antenna coupling

Approvals

IEC 60384-14.4
UL 60384-14
DIN EN 60384-14
CSA E60384-1:03, CSA E60384-14:09 CQC11-471112-2009

Approvals

UL, CSA, VDE

X Class - X1
